เกี่ยวกับสินค้า
ข้อมูลสินค้า
รหัสสินค้า:LS155Bสถานะสินค้า:Pre-Orderระยะเวลาจัดเตรียมสินค้า:30 วันรายละเอียดสินค้า

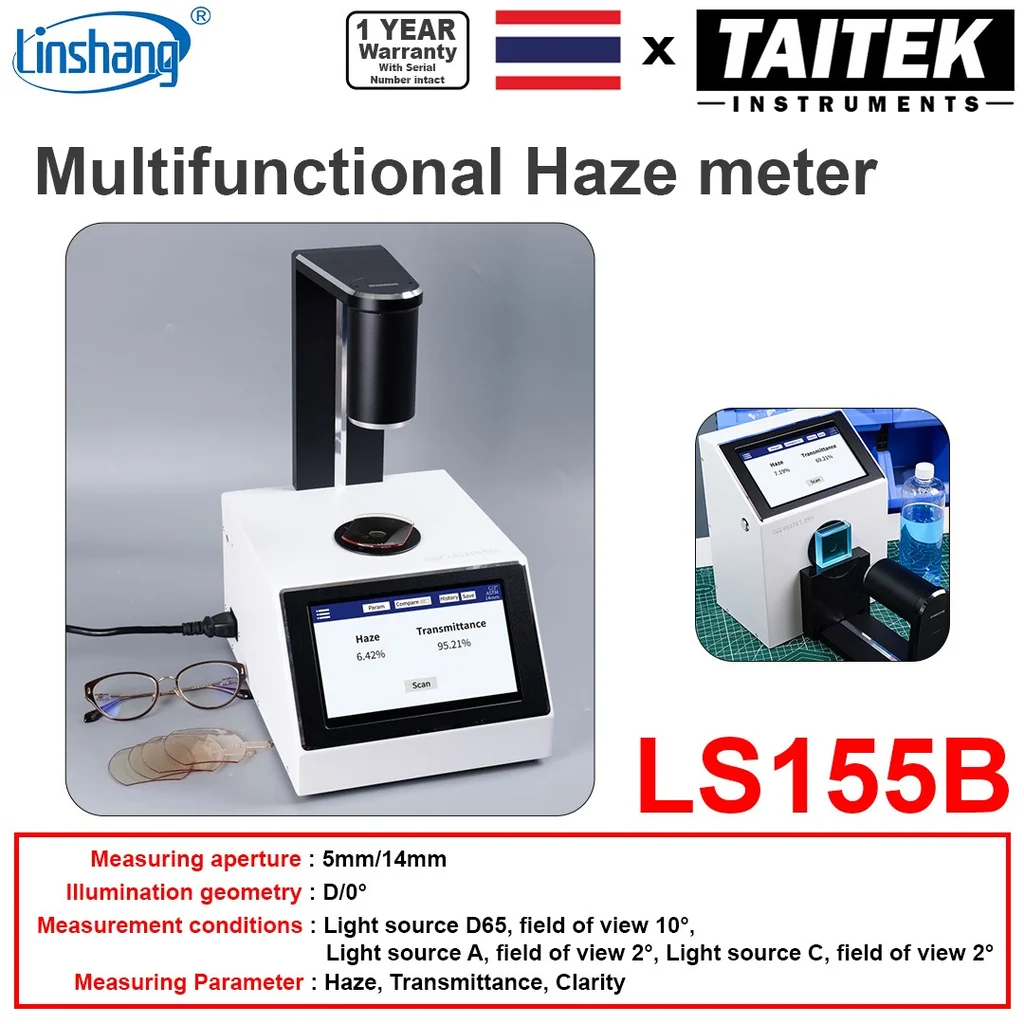

เครื่องวัดความขุ่นมัว Multifunctional Haze meter Linshang รุ่น LS155B Measuring aperture 5mm/14mm Illumination geometry D/0° เหมาะกับการวัดความขุ่นมัว การส่งผ่านแสง ความใส

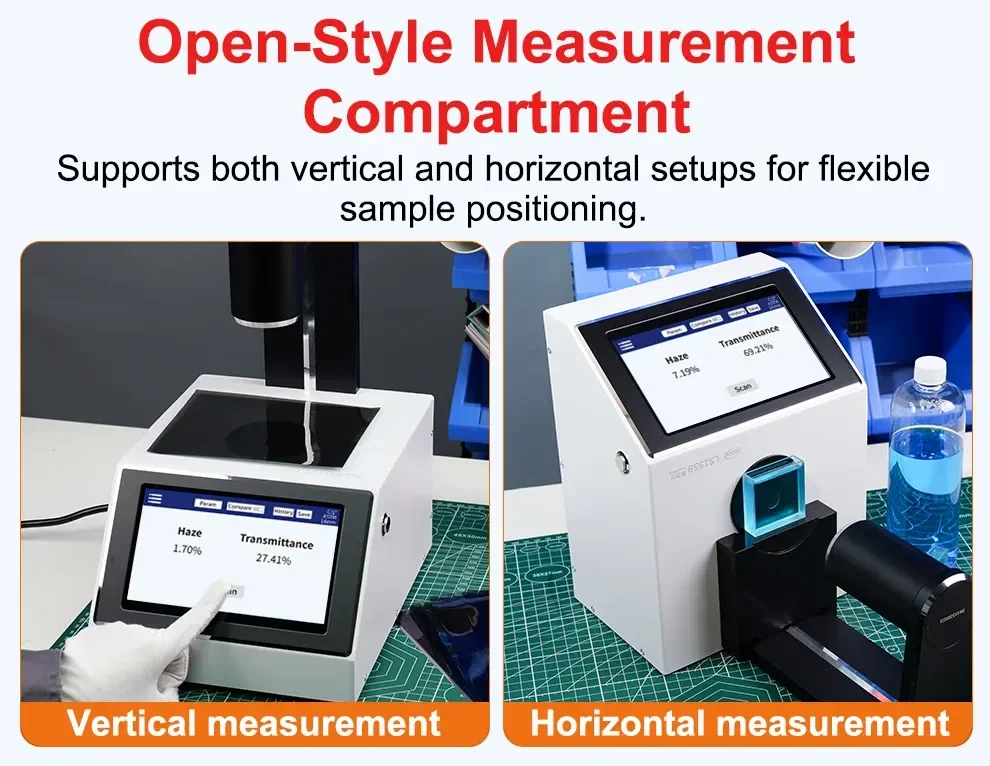

LS155B Haze Meter with 7 Inch Touchscreen Measure Haze Transmittance Clarity Complies with ASTM ISO for Translucent MaterialsDescriptions：LS155B Haze Meter features a full-spectrum LED light source and a spectral sensor, designed for measuring haze, transmittance, and other optical properties of various materials—including translucent, frosted, matte, and milky surfaces, as well as transparent and semi-transparent materials with regular transmission. The device is equipped with a 7-inch touchscreen for an exceptional user experience.Features：1. Complies with ASTM and ISO standards for diverse testing.2. Simple and comparative measurement modes for easy use.3. 7-inch touchscreen for intuitive operation.4. High repeatability: transmittance ≤ 0.05.5. Accurate enough to pass authoritative metrology tests.6. Supports vertical, horizontal, and liquid measurements.7. Dual-aperture design (14mm and 5mm).8. Includes A, C, and D65 standard illuminants.9. PC software for online measurements, data export, and printing.Specification:Illumination geometry : D/0°Illumination light source : Full spectrum LED light sourceSpectral range : 400-700nmSpectral interval : 10nmMeasuring aperture : 5mm/14mmMeasurement conditions : Light source D65, field of view 10° ; Light source A, field of view 2° ; Light source C, field of view 2°Measuring time : About 3sMeasuring parameter : Haze, Transmittance,ClarityTransmittance resolution : 0.01%Transmittance accuracy : ±2%, ±1% typicalTransmittance repeatability : ≤0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)Haze/Clarity resolution : 0.01%Haze/Clarity accuracy : Better than ±2%Haze/Clarity repeatability : ≤0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)Display : 7-inch 1024*600 dot matrix IPS color screenLanguage : Simplified Chinese, EnglishData transmission : USB (Type-C)Operating temperature range : 0~45°C, 0~85%RH (no condensation)Storage temperature range : -25~55°C, 0~85%RH (no condensation)Size : 21.1cm×26.4cm×36.0cm(LWH)Weight : 5.3kgSupply voltage : AC100~277V 50/60HZ
