เกี่ยวกับสินค้า
ข้อมูลสินค้า
รหัสสินค้า:LS239สถานะสินค้า:พร้อมส่งระยะเวลาจัดเตรียมสินค้า:2 วันรายละเอียดสินค้า

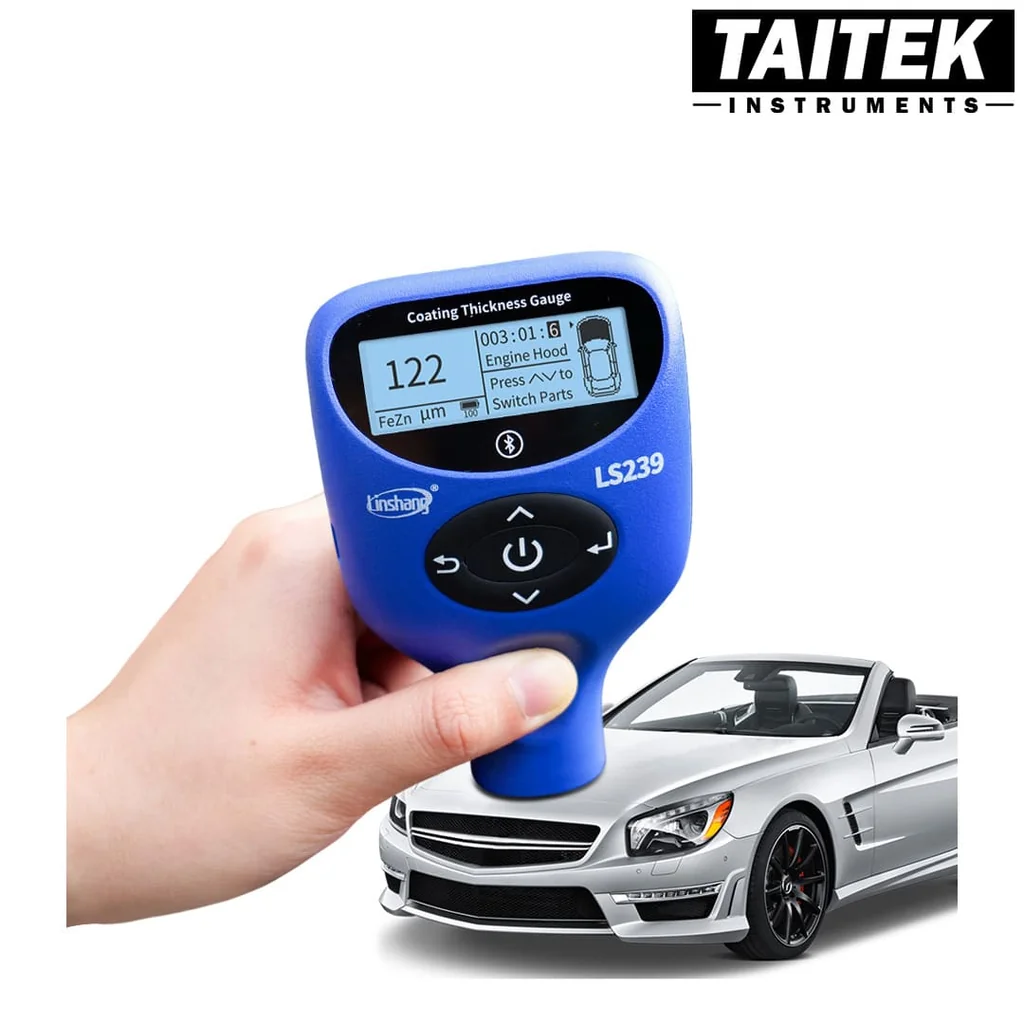

เครื่องวัดความหนาผิวเคลือบ Coating Thickness Gauge Linshang รุ่น LS239 ช่วงการวัด 0~5000um ความละเอียด 0.1um สำหรับตรวจสอบสีรถยนต์ความแม่นยำสูงระดับมืออาชีพ รุ่นใหม่ล่าสุด
Pro Grade Coating Thickness Meter LS239 5000μm Professional Mode Automotive Coating Thickness Gauge ตรวจหาจุดซ่อมสี โป๊วสี เจอแล้วแจ้งเตือนจุดที่สีหนาผิดปกติDescriptions：This brand-new intelligent paint thickness gauge is designed for accurate measurement of automotive paint thickness, especially on steel and aluminum surfaces. It can also identify non-metal body panels, putty layers, and galvanized steel, providing professional-grade detection. The device features a three-color backlight display for quick and clear readings, making it user-friendly for both pros and beginners. With built-in Bluetooth, the gauge connects to a mobile app or mini-program to record paint thickness values and body materials at different locations. You can even generate reports and visual info cards to share with customers or on social media.Features：1. Easily switch between simple mode and expert mode to suit different user needs.2. Each vehicle is divided into 19 components, with 6 data points stored per component for precise analysis.3. Intelligently detects ferrous putty, making it easy to identify refinished vehicles.4. Quickly identifies steel, aluminum, galvanized steel, and non-metal bodies—one device for all materials.5. Customizable alert thresholds notify users when measurements exceed set limits.6. Tri-color backlight display automatically adjusts to reflect different paint thickness levels.7. Ultra-fast response time—each measurement completes in just 0.3 seconds.8. Wide measurement range supports up to 5000μm for high-thickness detection.9. Stores data for up to 999 vehicles in Pro Mode.10. Works with a companion app to record full-vehicle data and generate inspection reports.Specification:Probe tip : RubyMeasurement principle : Fe: Hall effect / Al: Eddy currentProbe type : IntegratedMeasuring range : 0.0-5000μmResolution : 0.1μm/1μm/10μmAccuracy :
0-3000μm: ≤±(3%H+2μm), H is the standard value
3000-5000μm: ≤±(5%H+2μm), H is the standard valueUnit : μm / milMeasuring interval : 0.5 sMinimum measuring area : Ø = 25mmMinimum radius of curvature : Convex: 5mm / Concave: 25mmMinimum substrate thickness : Fe:0.2mm / Al:0.05mmDisplay : 192×64 dot matrix LCDPower supply : Rechargeable lithium battery 3.7V@1200mAhRange of working temperature : -20℃-50℃Storage temperature range : -20℃-60℃Host size : 108*70*31 mmWeight (including battery) : 88.8gData transfer : Bluetooth
