เกี่ยวกับสินค้า
ข้อมูลสินค้า
รหัสสินค้า:ET-958สถานะสินค้า:พร้อมส่งระยะเวลาจัดเตรียมสินค้า:2 วันรายละเอียดสินค้า

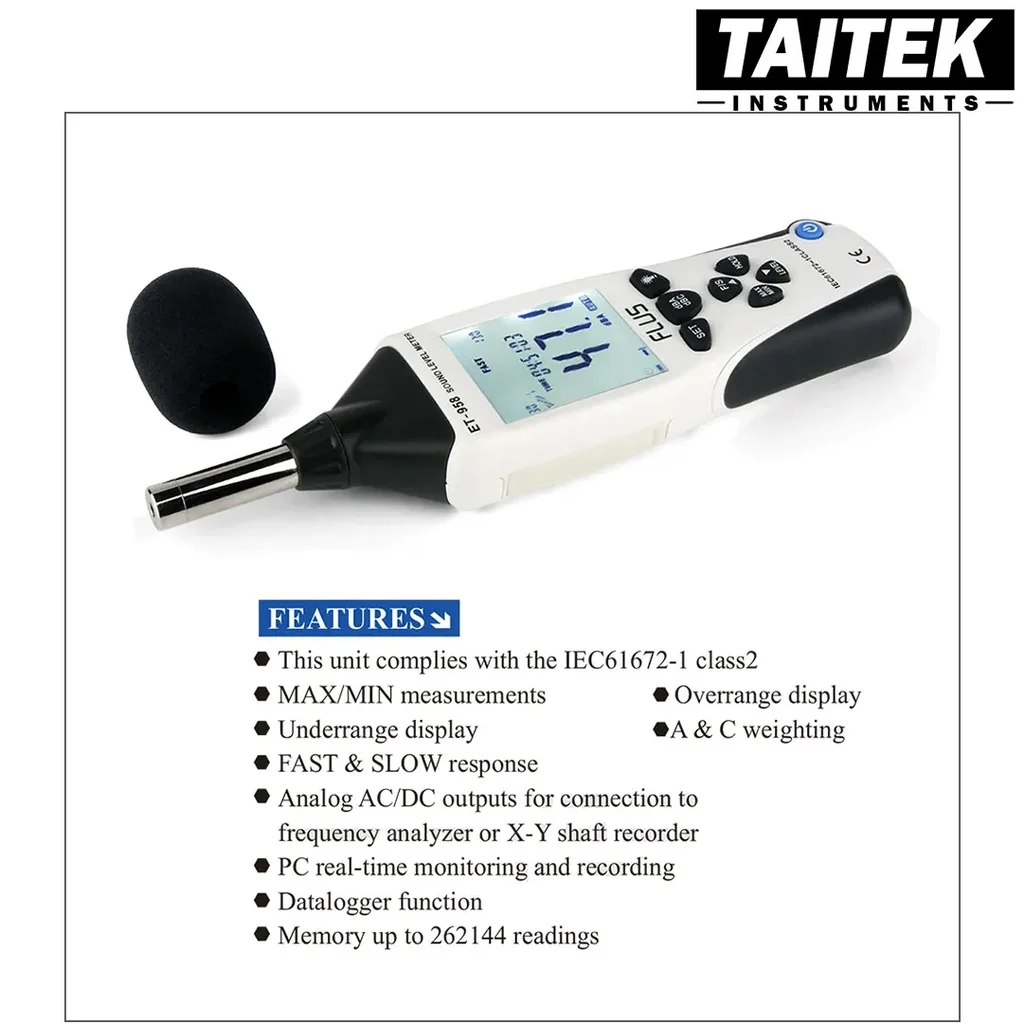

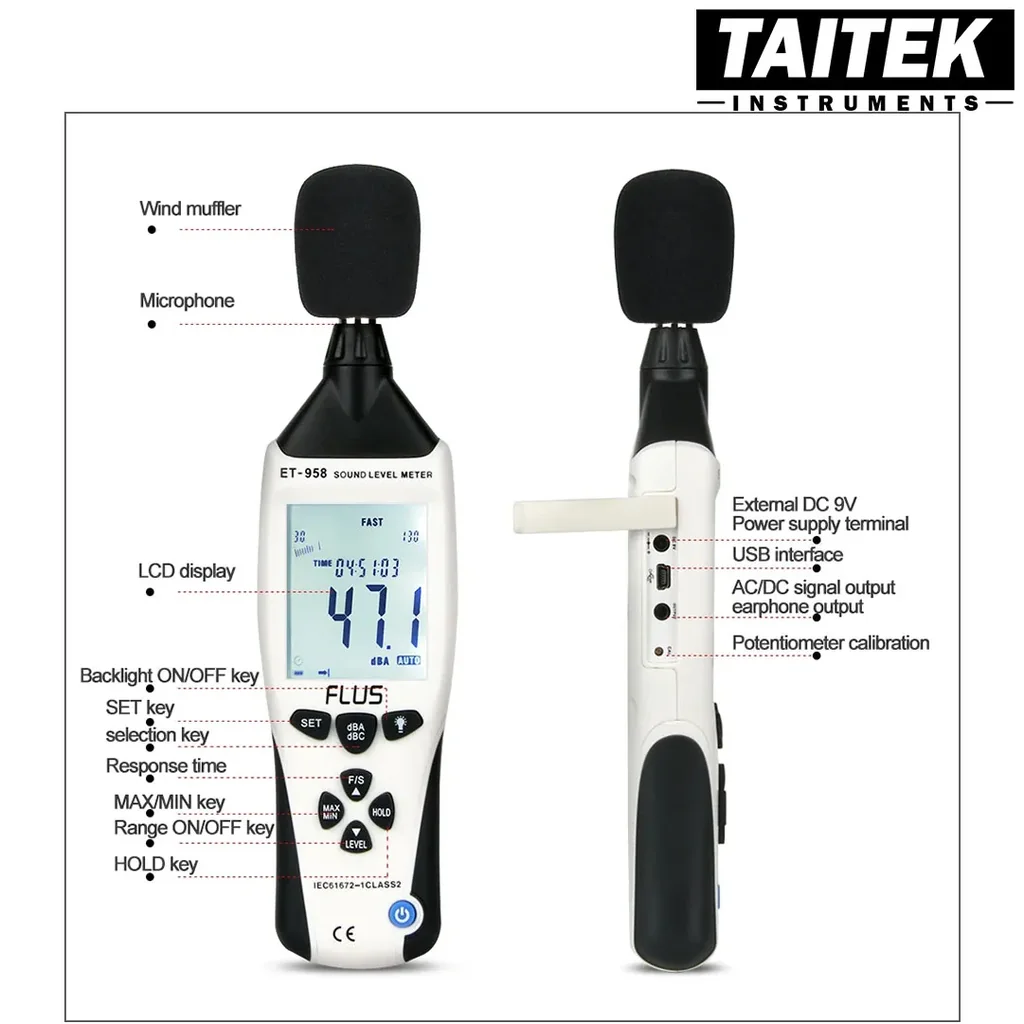

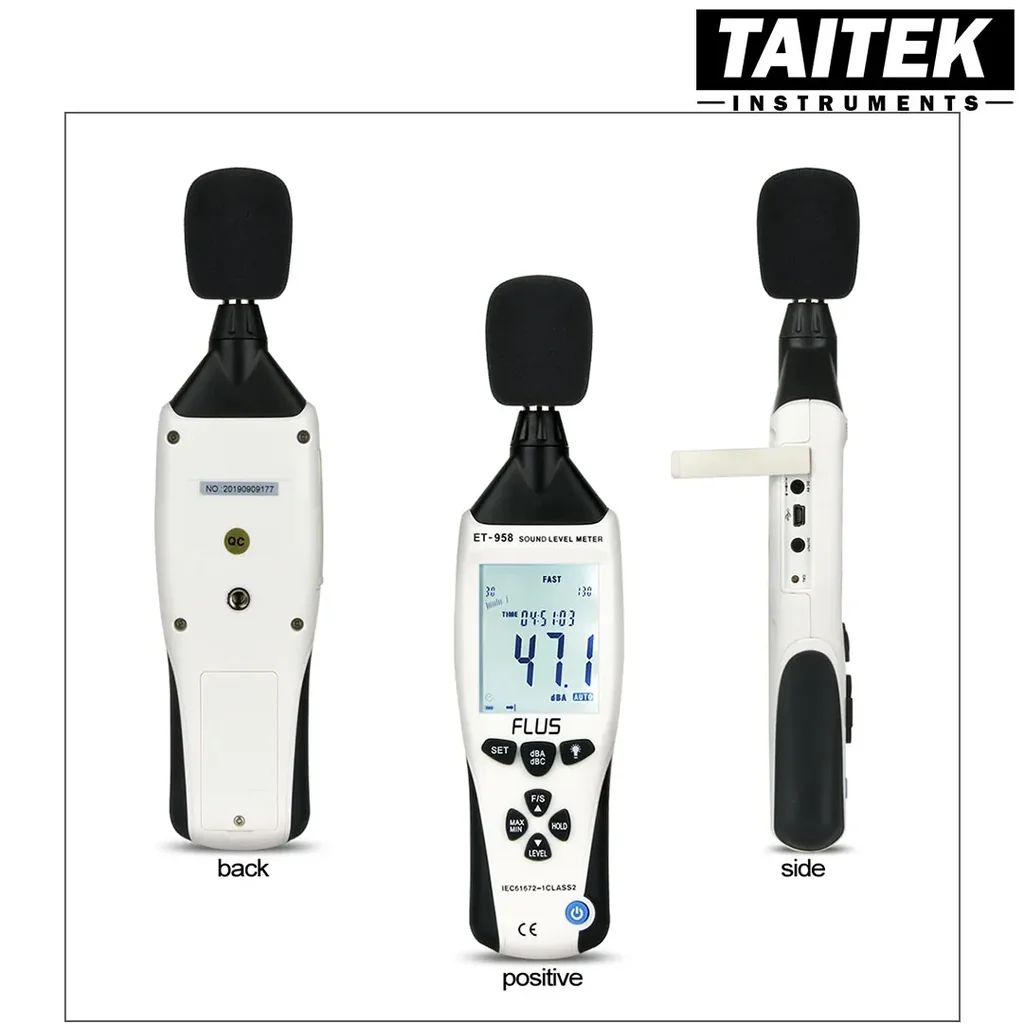

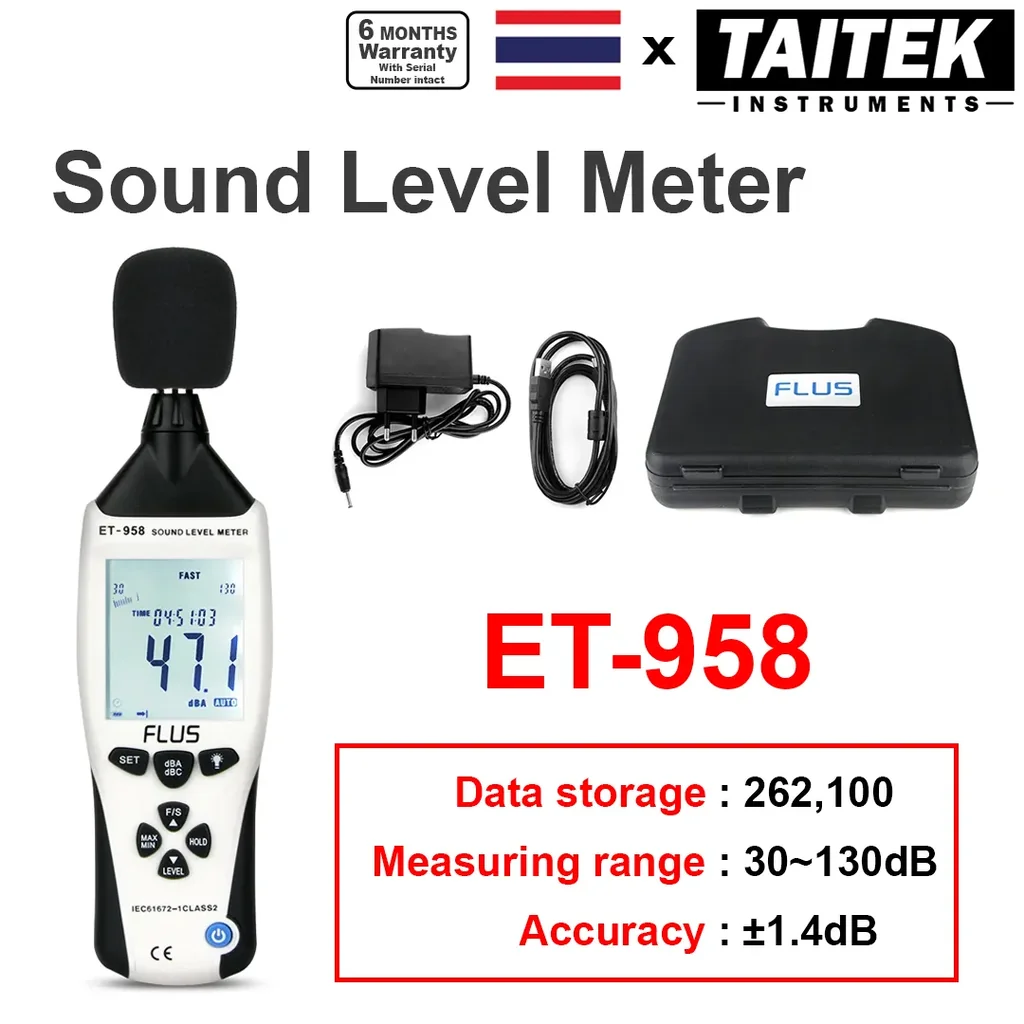

เครื่องบันทึกระดับเสียง Sound Level Meter Data Logger FLUS รุ่น ET-958 ความจำ 262100 ค่า ใช้แบตทำงานต่อเนื่อง 30ชม.
>>> มีวิดีโอสอนการใช้งาน
This Sound Level Meter is designed to meet the measurement requirements of safety Engineers, Health, Industrial safety offices and sound quality control in various environments like construction, factories, schools, offices, traffic access, household, stereos, etc.
◆Comply with IEC61672-1 CLASS2 standard
◆Max/Min record
◆Over range indication
◆Under range indication
◆Time, data transmission display
◆A & C Weighting
◆Selectable response time: FAST/SLOW
◆Analog AC/DC outputs for connection to frequency analyzer or X-Y shaft recorder
◆PC real-time monitoring, recording and memory
◆4digits LCD display with a resolution of 0.1dB
Specification
Applied standard: IEC61672-1 CLASS2
Accuracy: +/-1.4dB
Frequency range: 31.5Hz～8kHz
Dynamic range: 50dB
Measuring level range:
Lo：30dB～80dB
Med：50dB～100dB
Hi： 80dB～130dB
Auto:30dB～130dB
Frequency weighting: A & C
Time weighting: FAST 125ms;SLOW ( 1s )

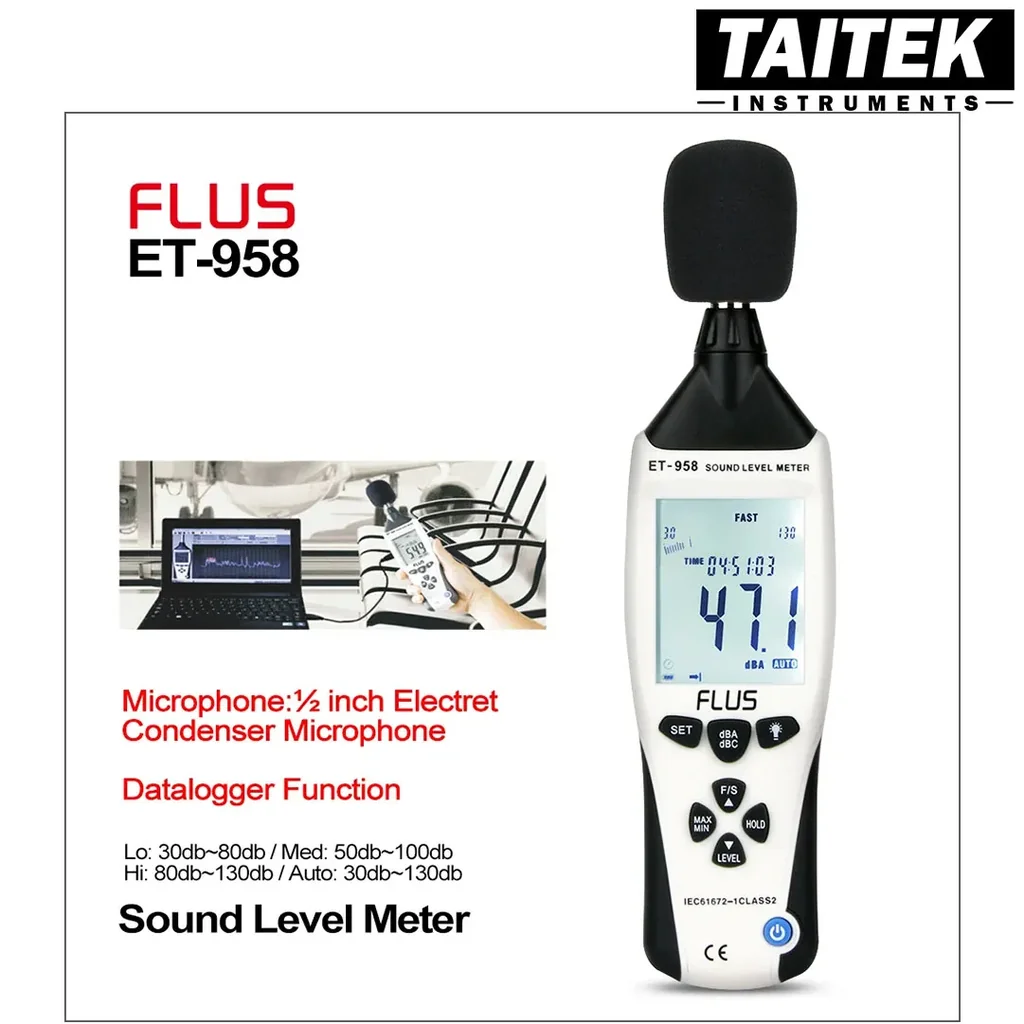

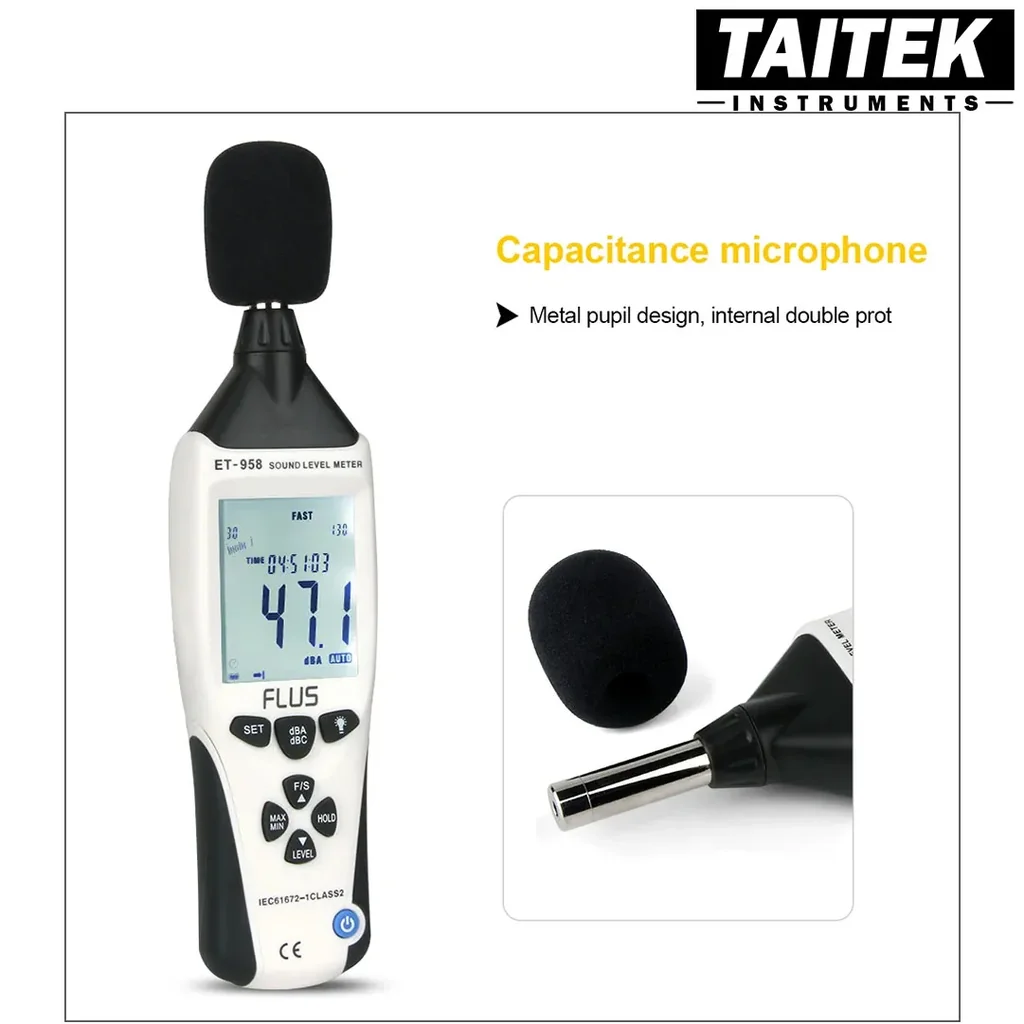

Microphone: 1/2 inch electret condenser microphone
Display: 4digits LCD display with a resolution of 0.1dB
Sampling time: 2 times/sec
MAX , MIN , HOLD
Alarm function:
"OVER"is when input is more than upper limit of range.
"UNDER"is when input is less than lower limit of range.
Analog output: AC/DC outputs from earphone outlet. AC=1Vrms , DC=10mV/dB
Data recording: Meter memory 262100 readings. PC monitors and records in real-time,
each 15,000 readings will be saved one time automatically.
Auto power off: Meter automatically shuts down after approx. 15 minutes inactivity.
Power supply: One 9V battery, 006P or IEC 6F22 or NEDA 1604.
Battery life: at least 30 hours
Operating conditions: -20~60℃; 10％RH～90％RH
Storage conditions: -20℃～60℃; 10％RH～75％RH
Dimension: (L*W*H) 252*66 *33 mm
Weight: 262g

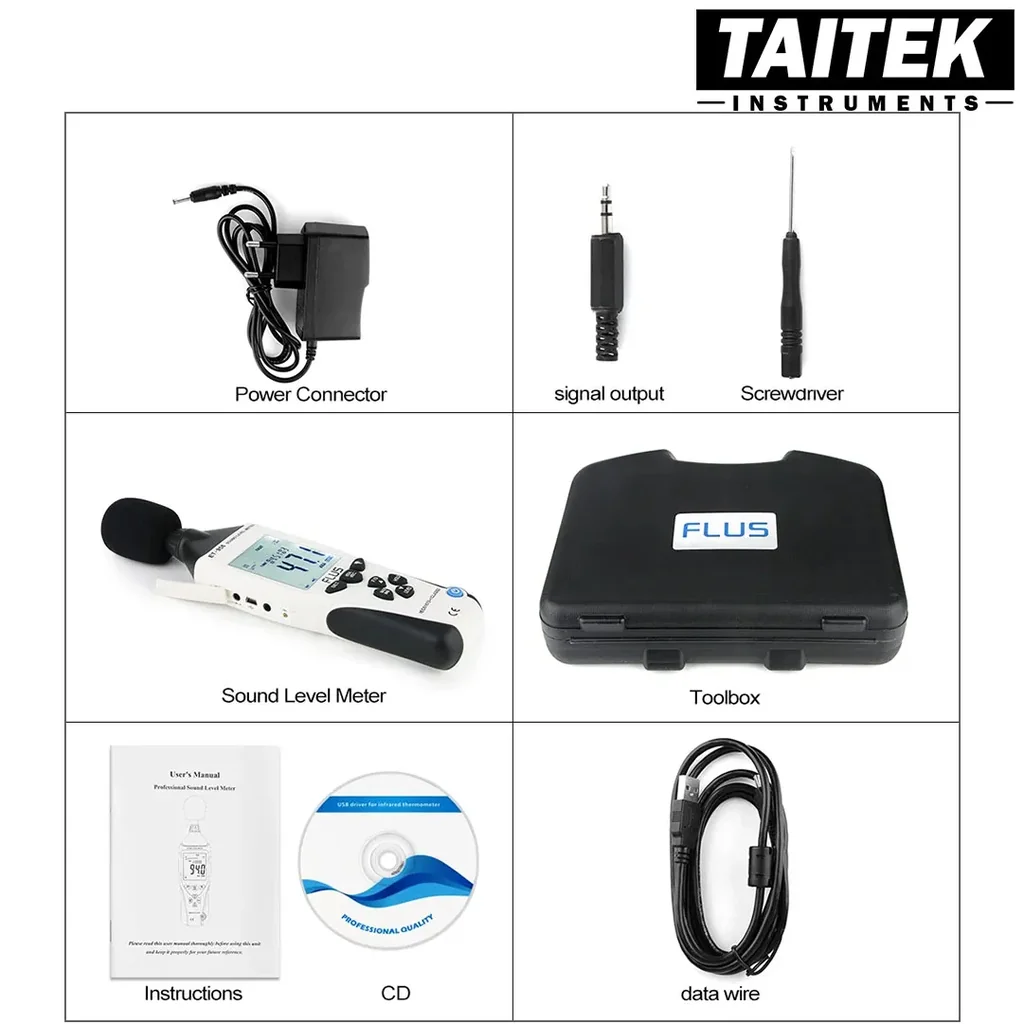

Package included
1 x Sound level meter(including battery)
1 x English Operation Manual
1 x Sponge Ball
1x USB cable
1 x Chargeable cable
1 x CD
1 x Plastic box
