รหัสสินค้า:LS155สถานะสินค้า:Pre-Orderระยะเวลาจัดเตรียมสินค้า:30 วันรายละเอียดสินค้า

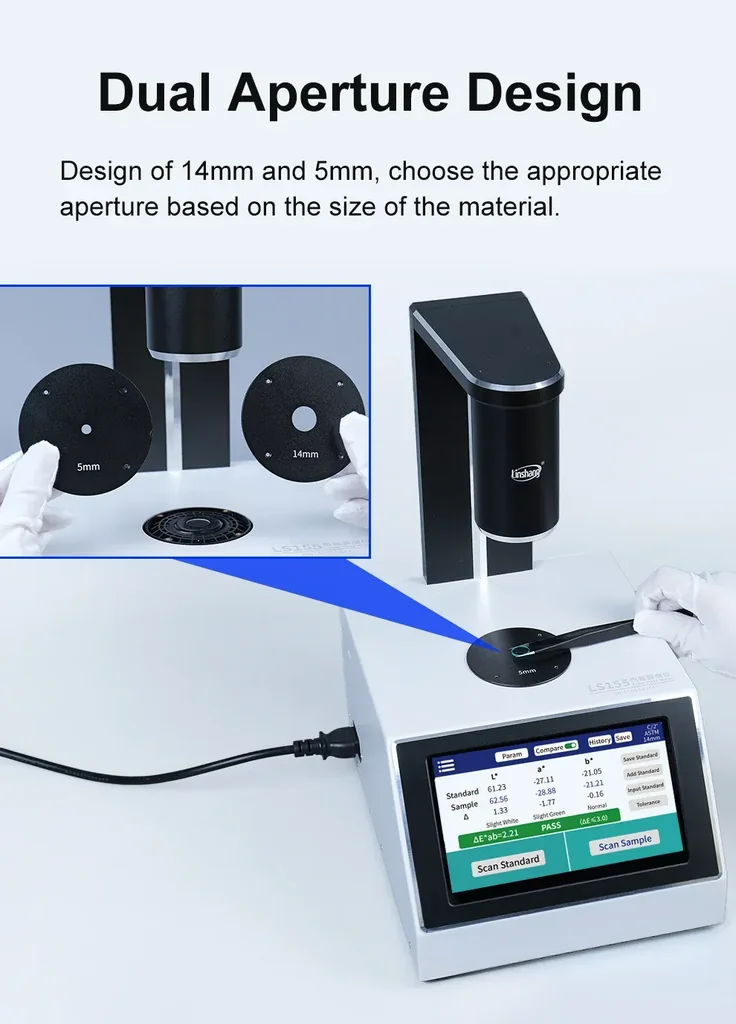

เครื่องวัดสีและความขุ่นมัว Multifunctional Color Haze meter Linshang รุ่น LS155 Measuring aperture 5mm/14mm Illumination geometry D/0° เหมาะกับการวัดสีของเหลว ความขุ่นมัว การส่งผ่านแสง การส่งผ่านสเปกตรัม ความใส ความขุ่น

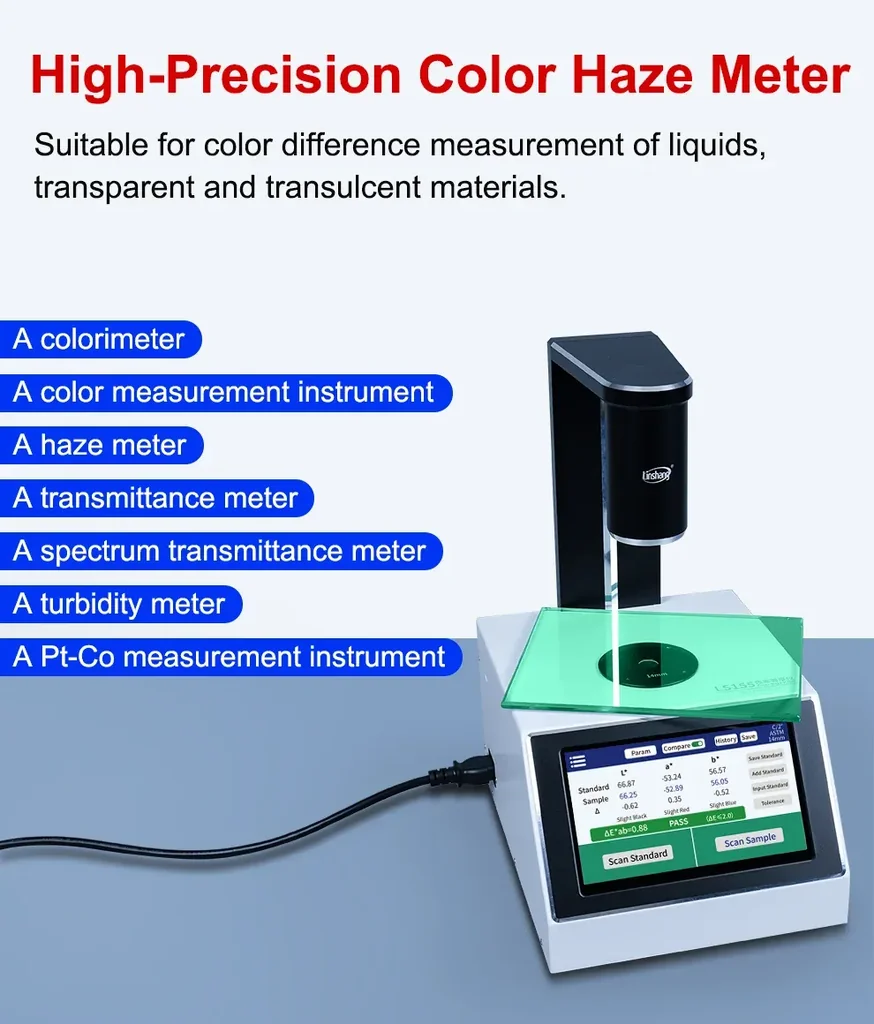

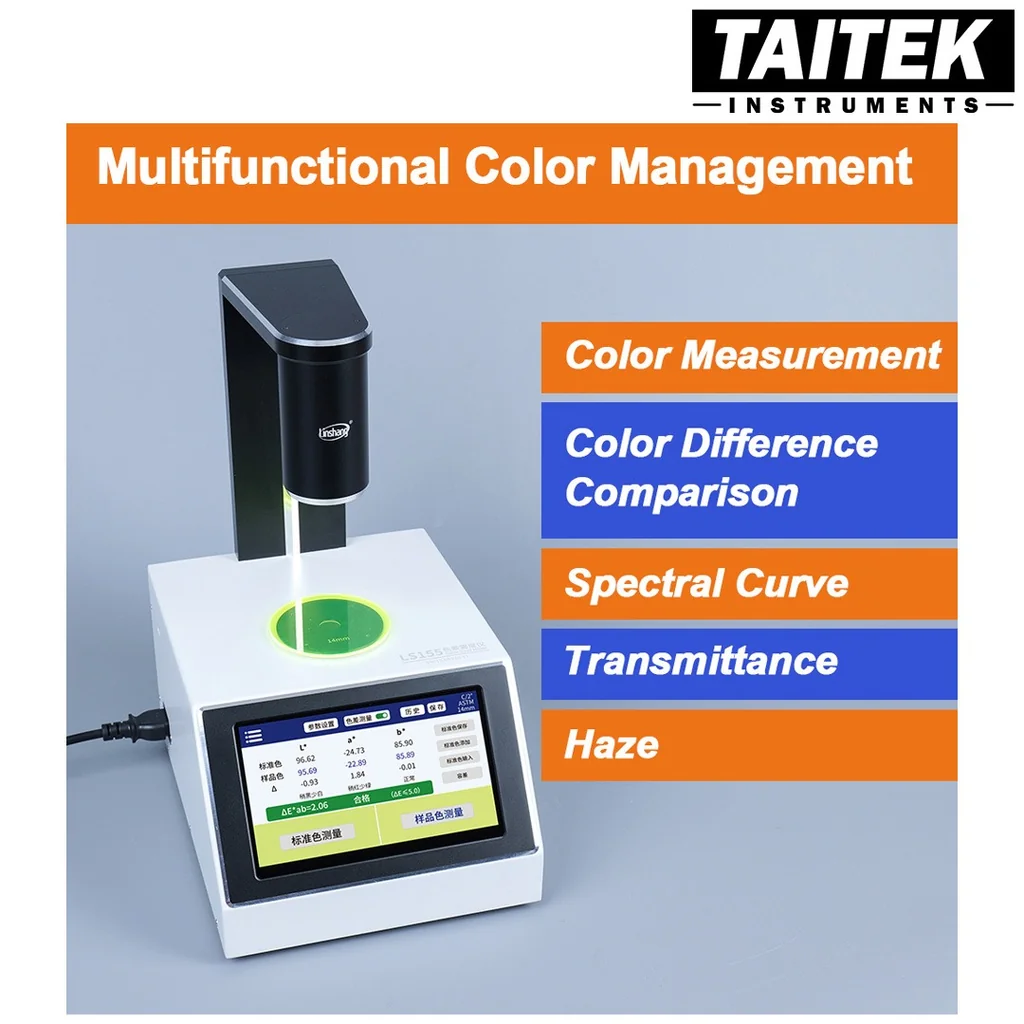

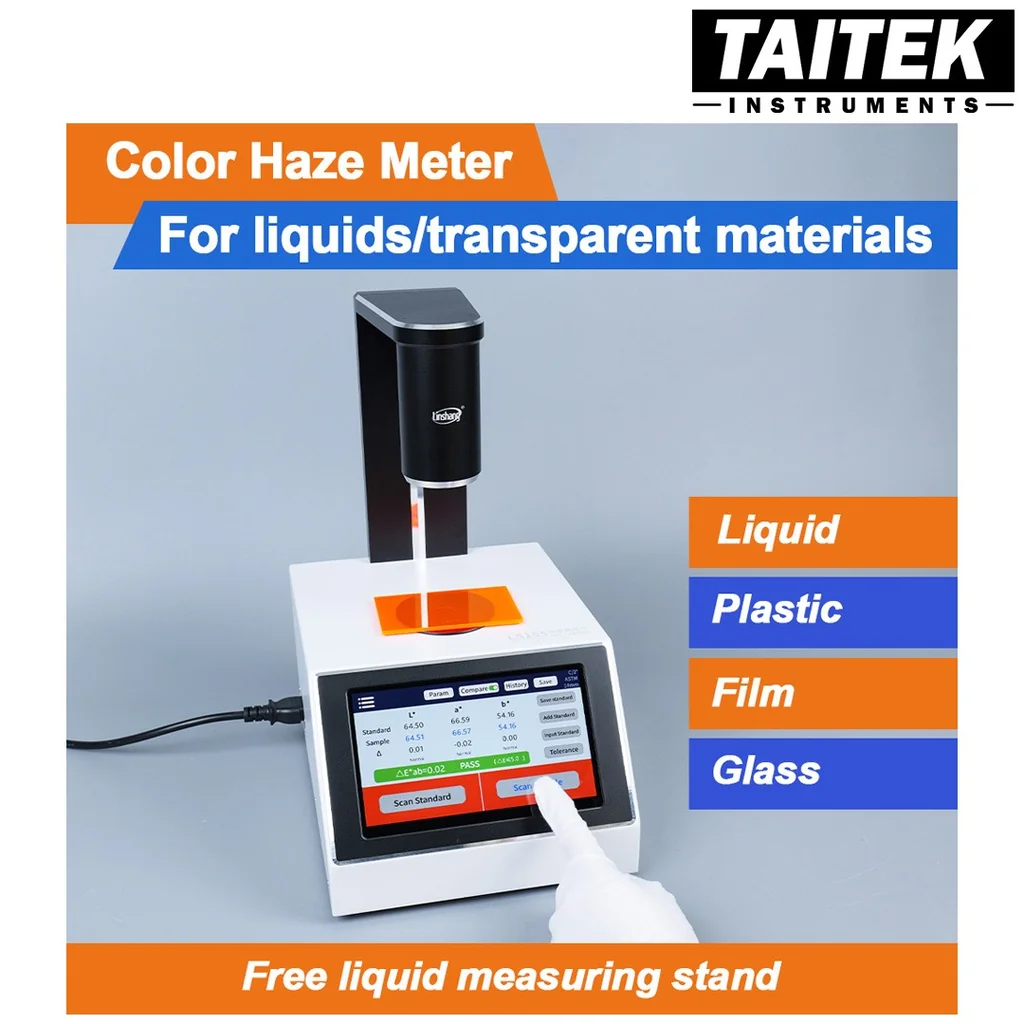

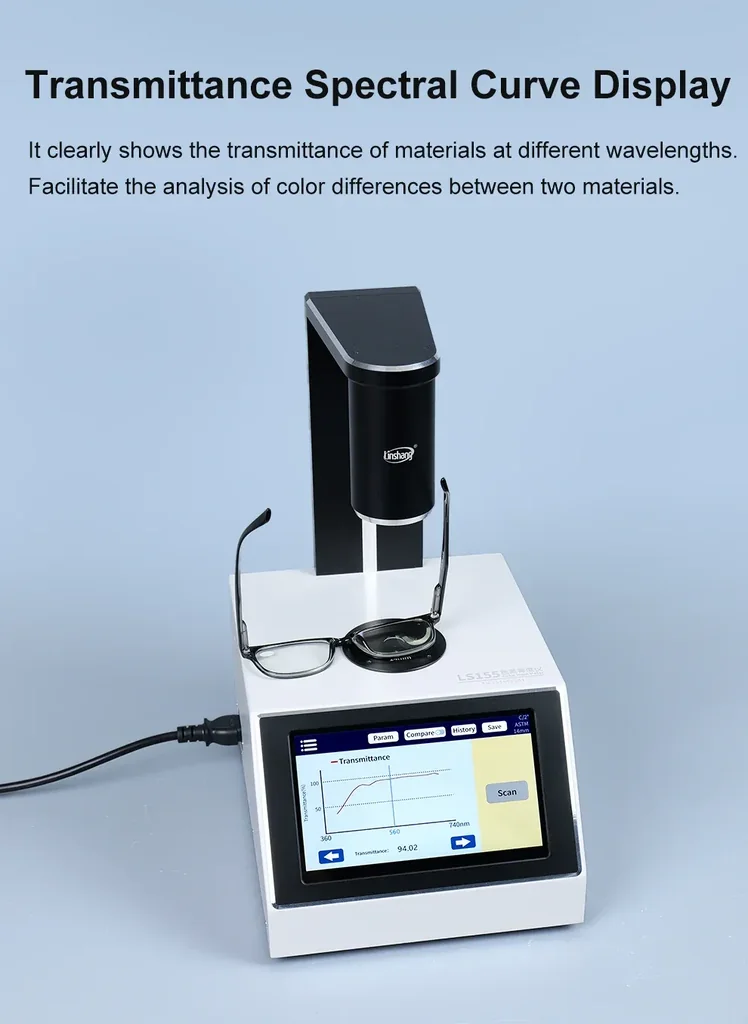

LS155 Color Measuring Honey Animal Vegetable Oil Colorimeter for Liquids Color MeasurementDescriptions：LS155 colorimeter vegetable oil is a multifunctional color haze meter. The colorimeter vegetable oil adopts full spectrum LED light source and spectral sensor design, which is used for the measurement of haze, transmittance and color of various diffuse transmittance materials such as milky white, matte, frosted surface and various transparent and semi-transparent regular transmittance materials, and the liquid colorimeter can also display the spectral transmittance curve. The colorimeter animal oil is equipped with 7-inch color screen and capacitive touch screen, which provides excellent operation experience.Features：1. Compliant with both ASTM and ISO standards, accommodating diverse testing requirements.2. The colorimeter animal oil can measure color difference, haze, and transmittance, displaying the transmittance spectral curve.3. Easily switch between simple and comparative measurement for straightforward operation.4. Equipped with a 7-inch touchscreen, offering excellent human-machine interaction for convenient operation.5. The honey color measuring colorimeter has excellent repeatability, with haze and color difference repeatability ≤ 0.03, and transmittance repeatability ≤ 0.05.6. High accuracy ensures the ability to pass testing at authoritative metrology institutes.7. Offers both vertical and horizontal measurement modes, and is also capable of measuring liquids.8. Utilize a dual-aperture design with 14mm and 5mm options.9. Equipped with A, C, and D65 standard illuminants.10. Equipped with PC software for online measurements, supporting data export and printing.
Specifications:

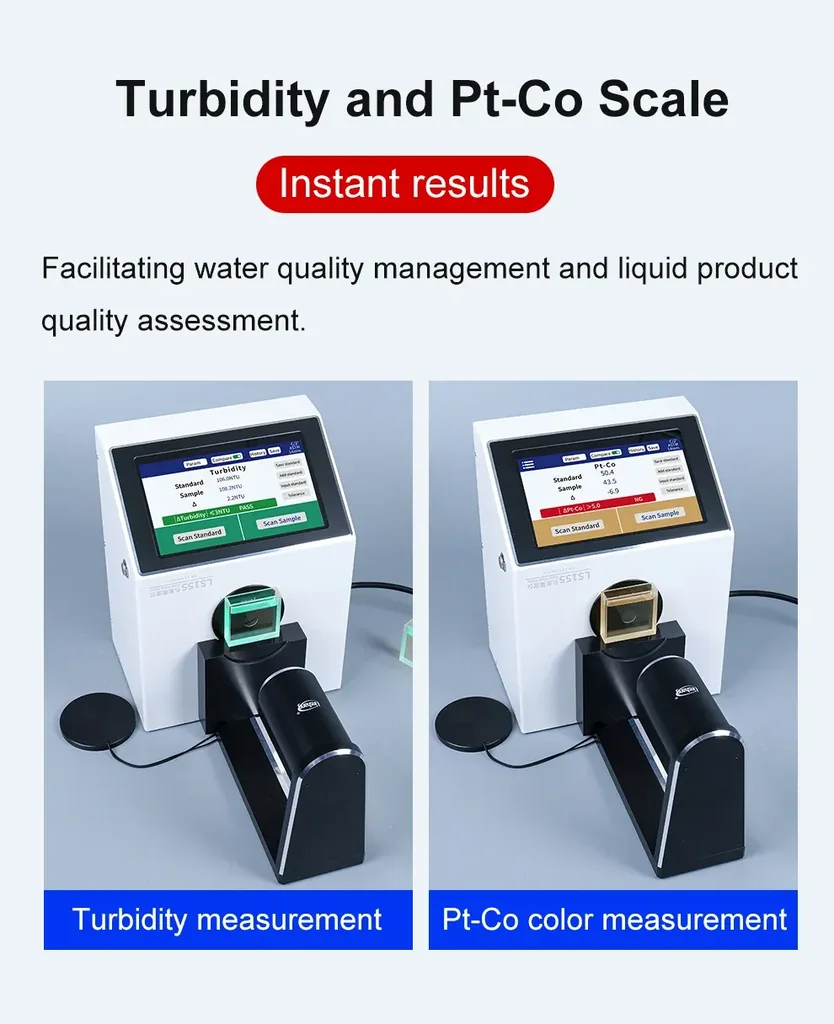

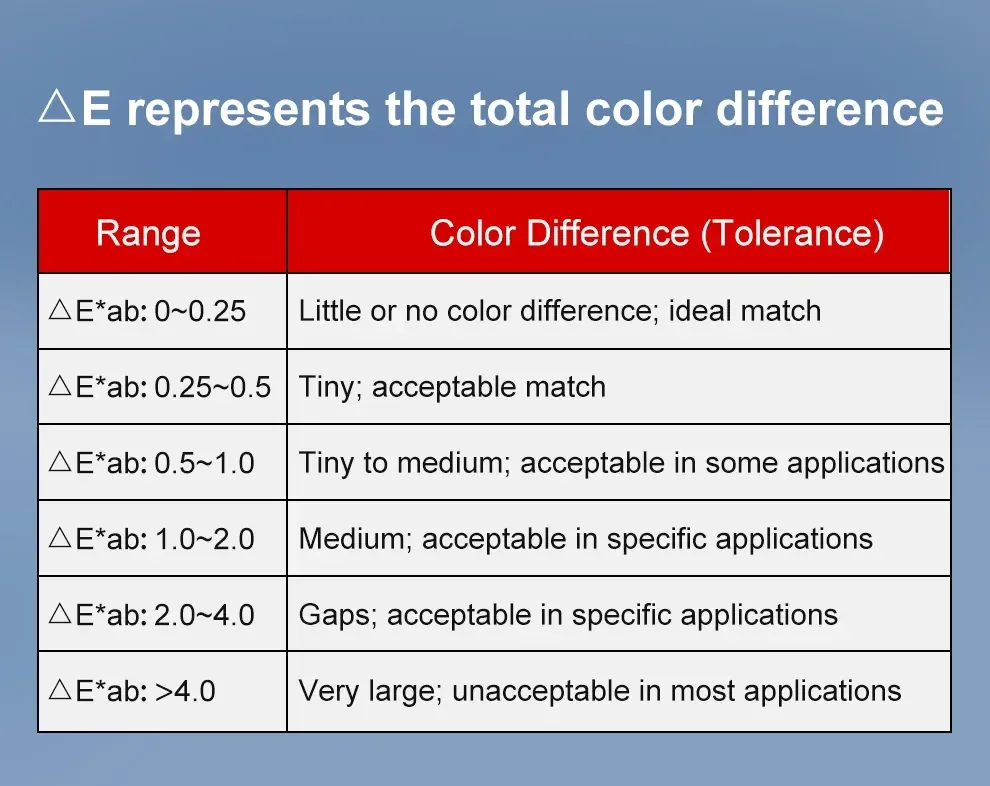

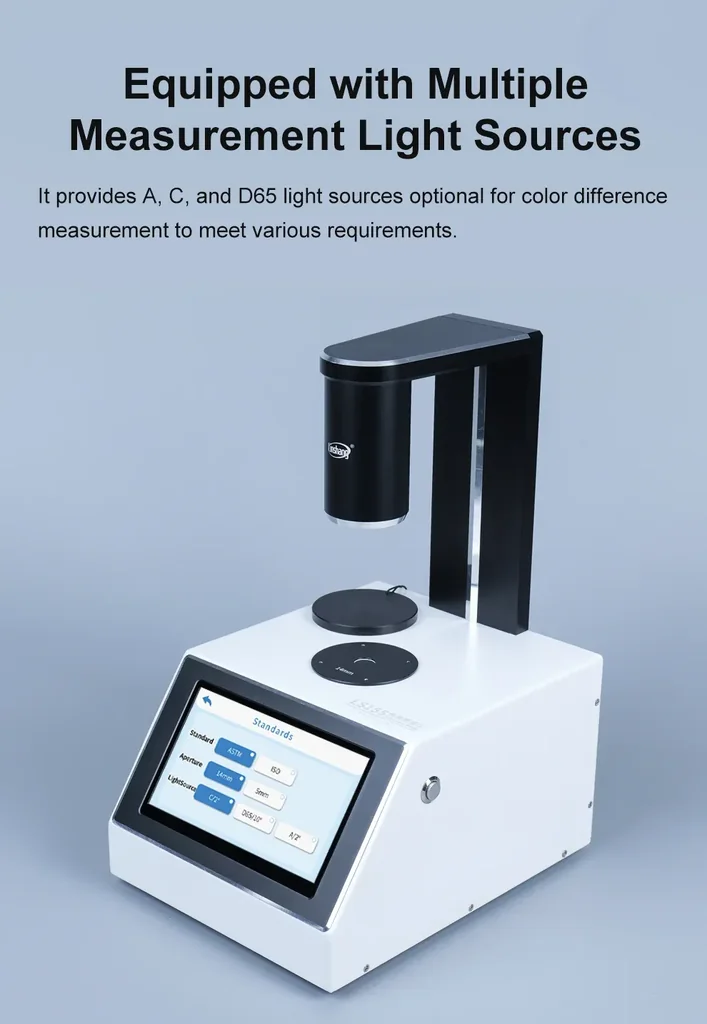

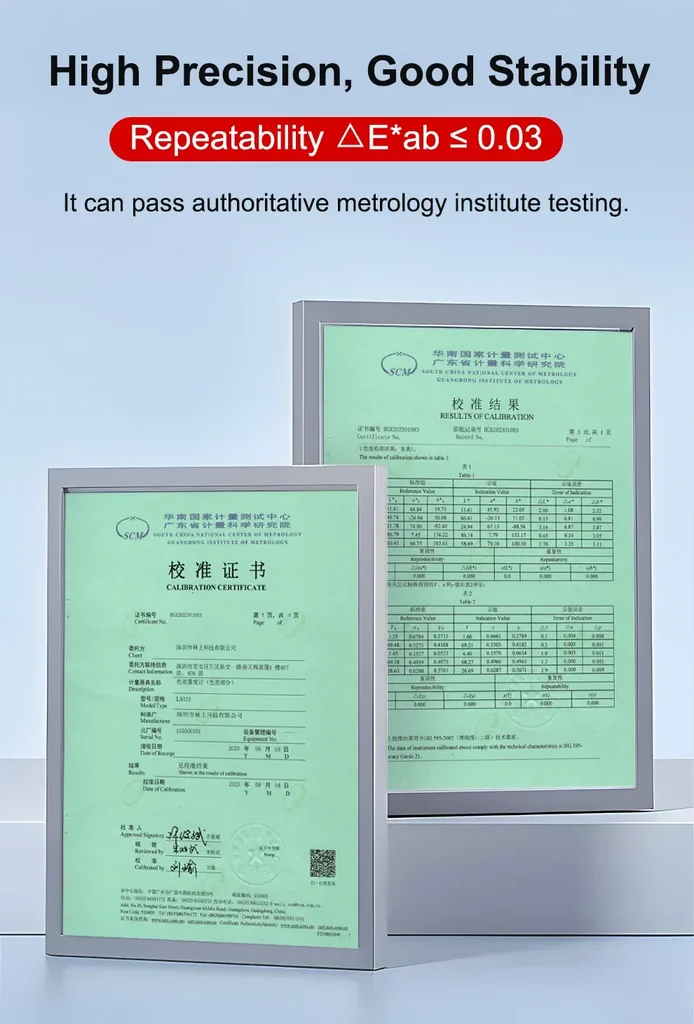

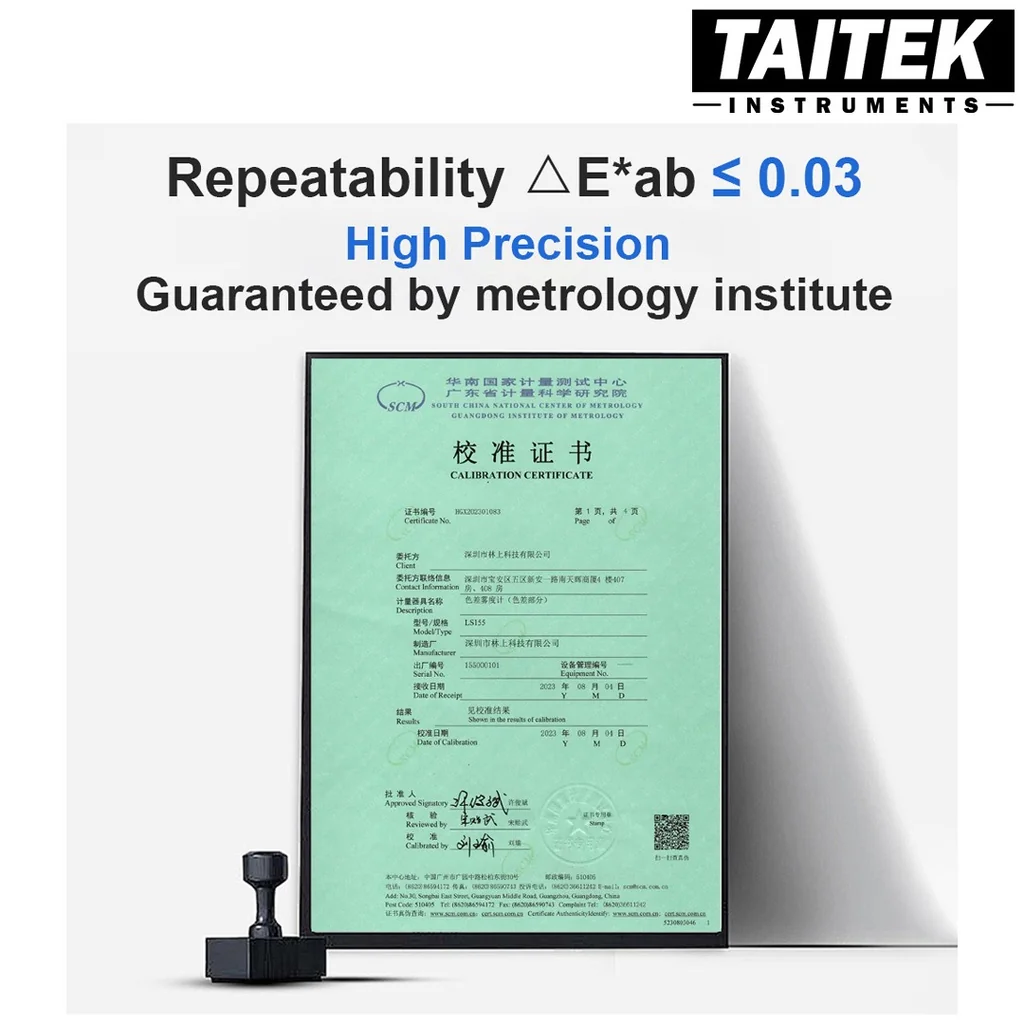

Illumination Geometry : D/0°Illumination Light Source : Full spectrum LED light sourceSpectral Range : 400-700nmSpectral Interval : 10nmMeasuring Aperture : 5mm/14mm/25mmMeasurement Conditions : Light source D65, field of view 10°; Light source A, field of view 2°; Light source C, field of view 2°Measuring Time : About 3sMeasuring Parameter : Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral transmittance, Clarity, Turbidity, Pt-Co(Hazen)Transmittance Resolution : 0.01%Transmittance Accuracy : ±2%, ±1% typicalTransmittance Repeatability : ≤0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)Haze/Clarity Resolution : 0.01%Haze/Clarity Accuracy : Better than ±2%Haze/Clarity Repeatability : ≤0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)Color Repeatability : Standard deviation ΔE*ab is within 0.03 (Standard deviation of 30 measurements at 3-second intervals on a standard haze plate with transmittance ~80% and haze ~30, after preheating calibration)Turbidity Resolution : 0.1NTUTurbidity Range : 0-1000NTUTurbidity Accuracy : ≤±(5%H+1NTU), H is standardPt-Co Resolution : 0.1Pt-Co Range : 0-1000Pt-Co Accuracy : ≤±(5%H+1), H is standardPower Supply : 100~277V, 0.4A, 50/60HZDisplay : 7 inch 1024*600 dot matrix IPS color screenLanguage : Simplified Chinese, EnglishData Transmission : USB (Type-C)Operating Temperature Range : 0-45℃, 0-85%RH(no condensation)Storage Temperature Range : -25-55℃, 0-85%RH (no condensation)Dimension : 211mm×264mm×360mm (LWH)Weight : 5300g
