รหัสสินค้า:LS171สถานะสินค้า:พร้อมส่งระยะเวลาจัดเตรียมสินค้า:2 วันรายละเอียดสินค้า

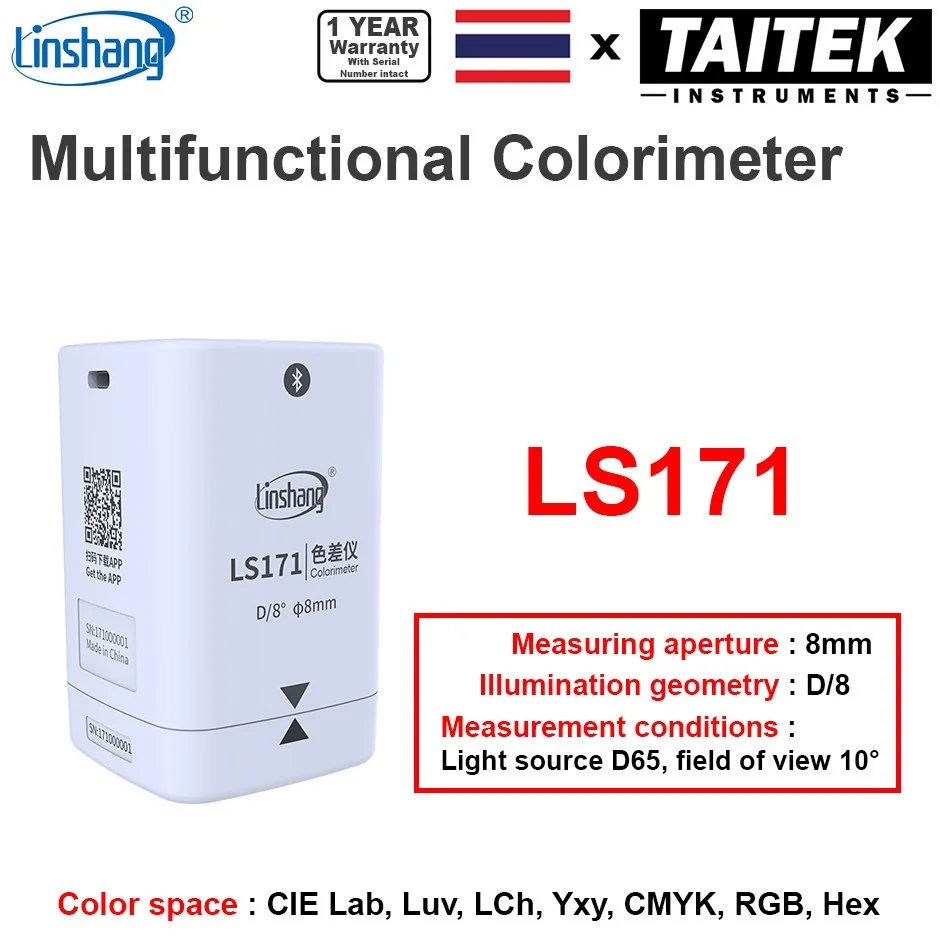

เครื่องวัดสี Multifunctional Colorimeter Linshang รุ่น LS171 Measuring aperture 8mm Illumination geometry D/8 ขนาดเล็กพกพาง่ายเหมาะกับการใช้งานทั่วไป

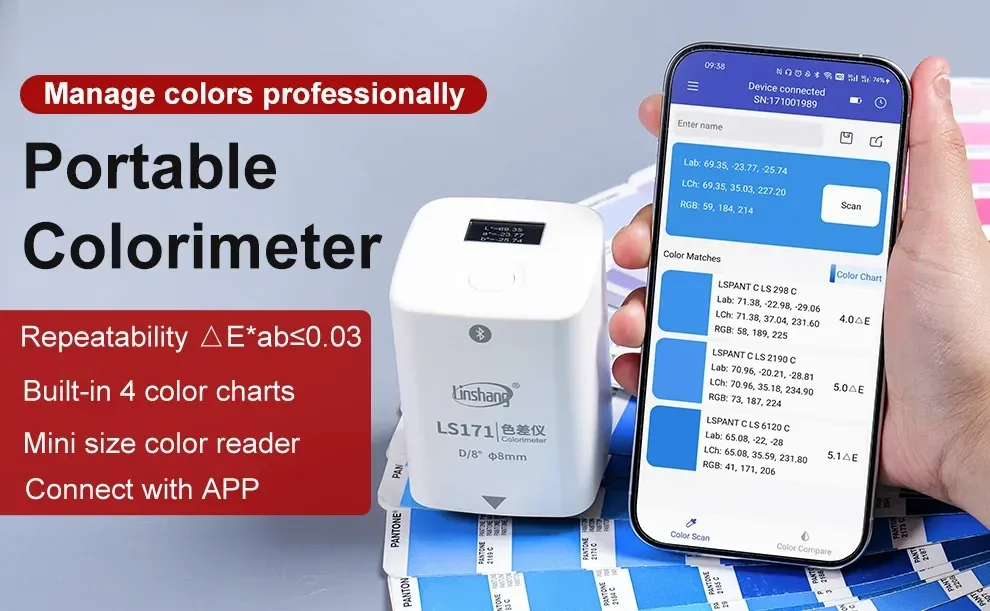

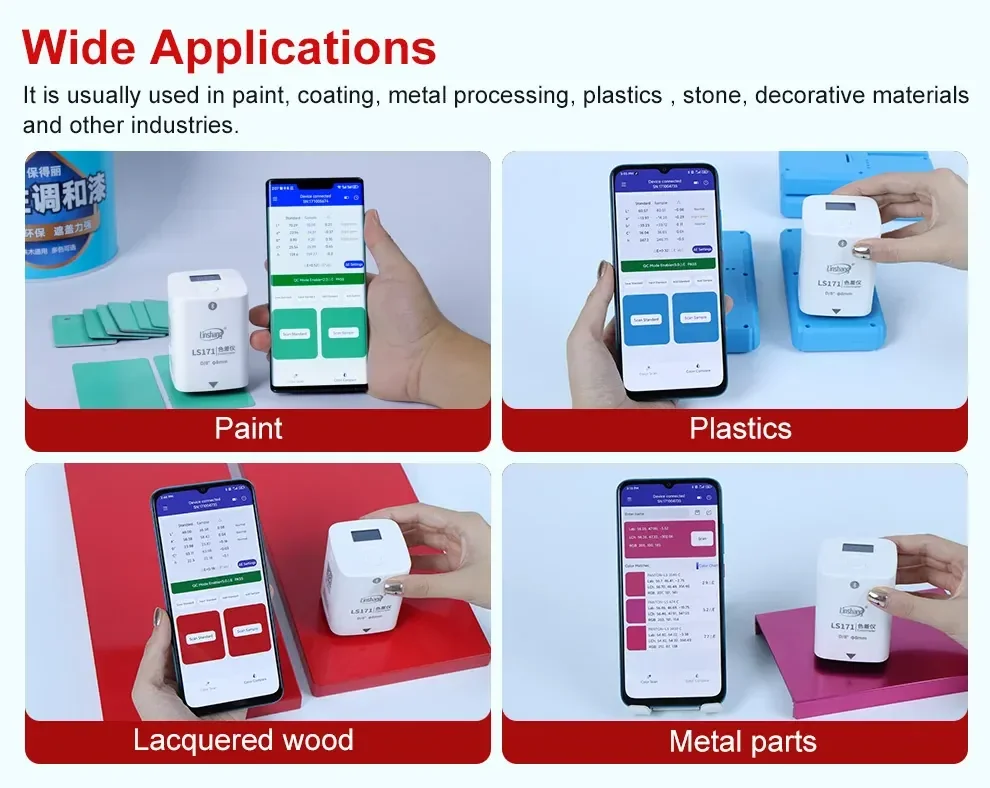

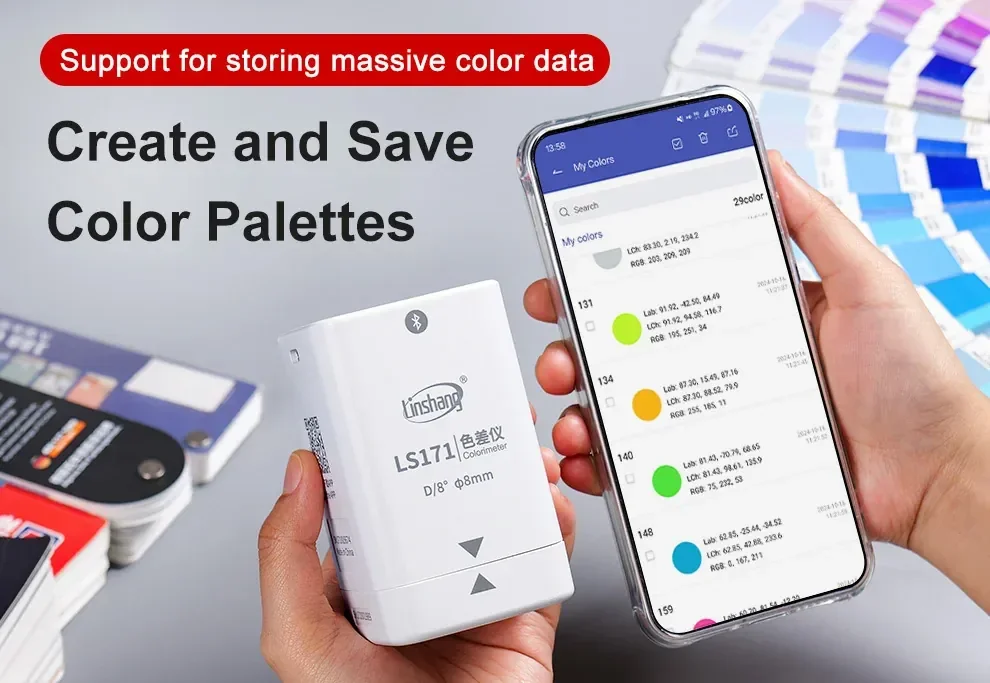

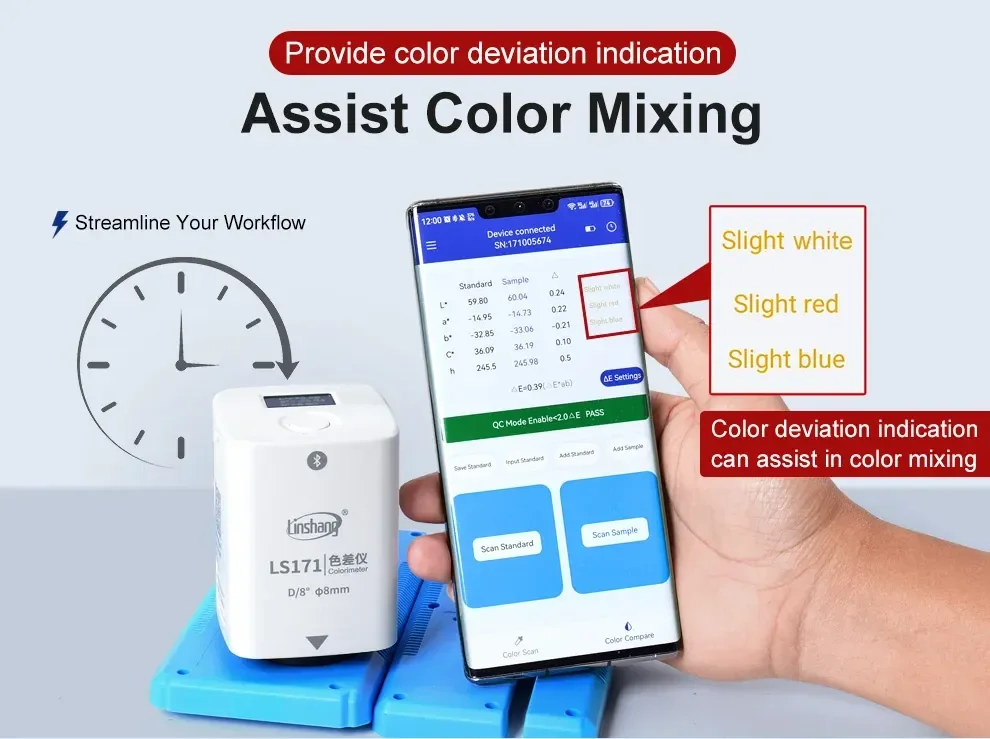

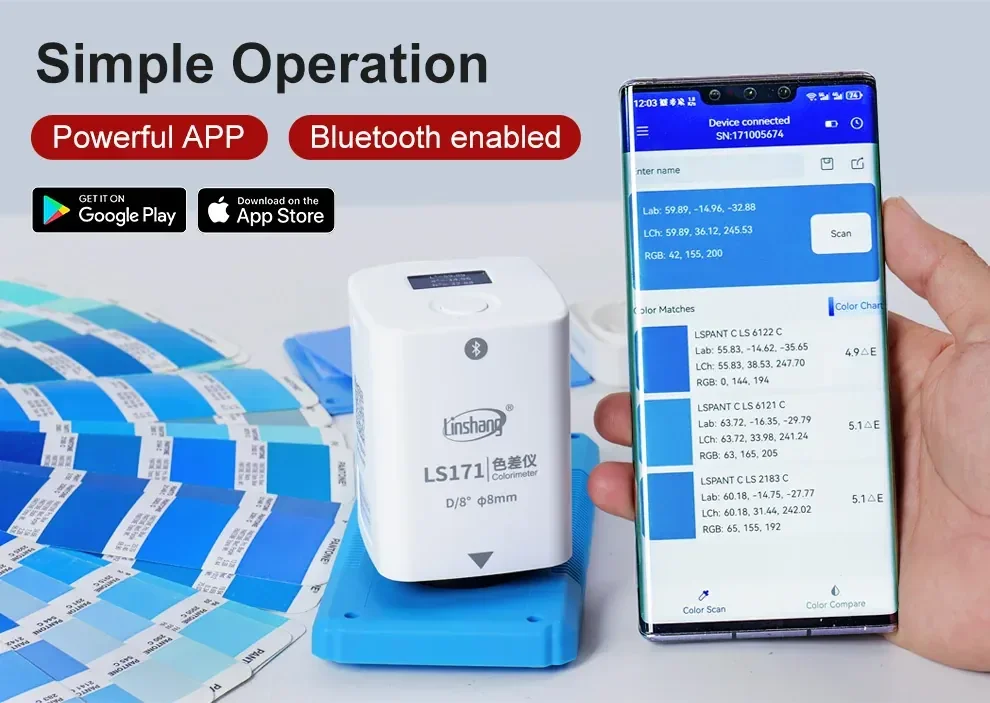

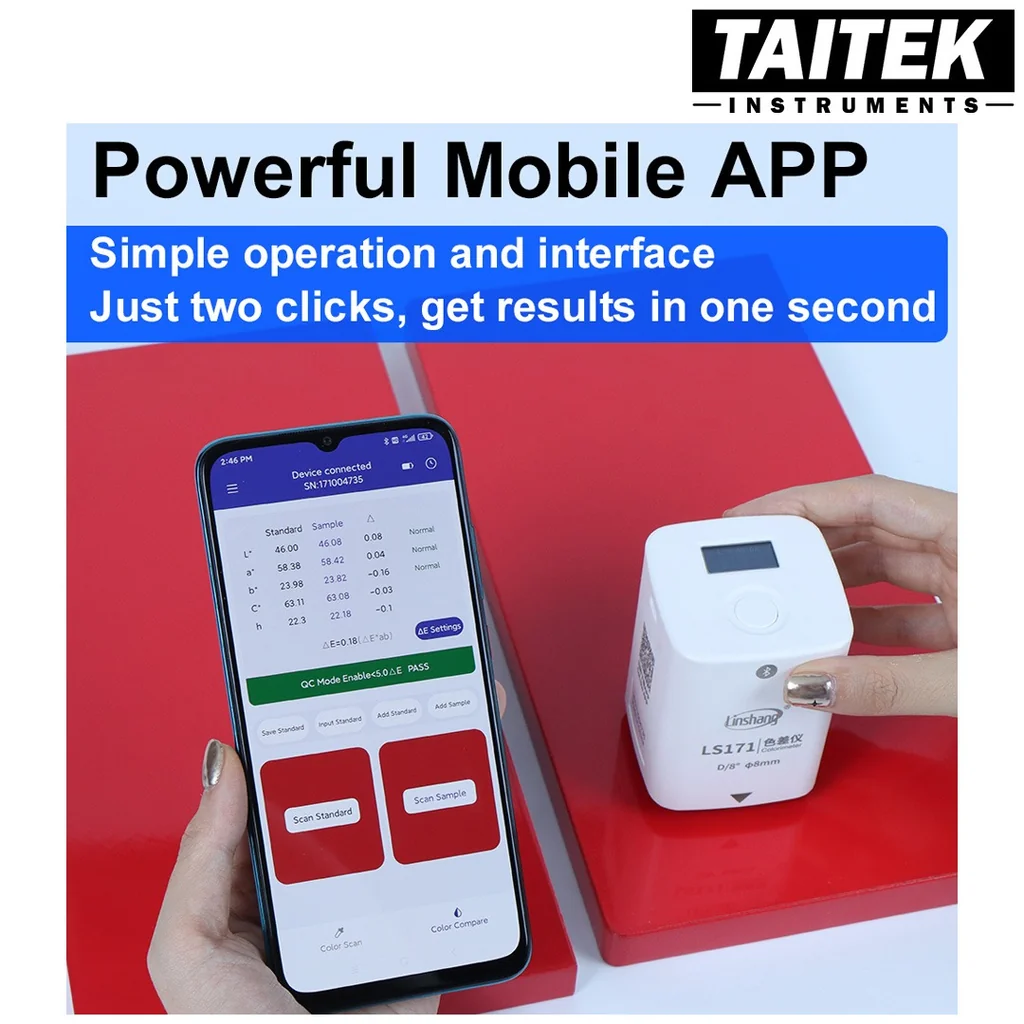

LS171 Precision Portable Colorimeter Color Matching Meter Price Pantone Paint Color Reader Handheld Colormeter ColorimeterDescriptions：LS171 portable colorimeter with compact size and D/8 illumination is widely used in car paint spraying, hardware, paint and coating, plastic, and other fields. Through the mobile APP, two clicks can realize the color difference comparison. The precision colorimeter also has QC function for automatic qualification judgment. There are 7 color spaces to choose from such as Lab, Lch, etc. when measuring color. Built-in multiple electronic color charts, and can quickly match the three closest color card number. The color matching meter has CE certificate and can pass the authority metrology institute inspection.Features：1. Adopts D/8 illumination with a wide range of applications.2. Two clicks can realize the color difference comparison with mobile APP.3. Accurate measurement, repeatability ΔE*ab≤0.03.4. 7 color spaces to choose from such as Lab, Lch, etc when measuring color.5. LS171 colorimeter can create a personal color chart, store large amounts of color data, and can share test results.6. Built-in multiple electronic color charts, and can quickly match the three closest color card number.7. Without worrying about product quality and safety with CE certificate.8. The pantone color reader can pass the authority metrology institute inspection.9. Support QC function, automatic determine whether the material is qualified.
Specification:

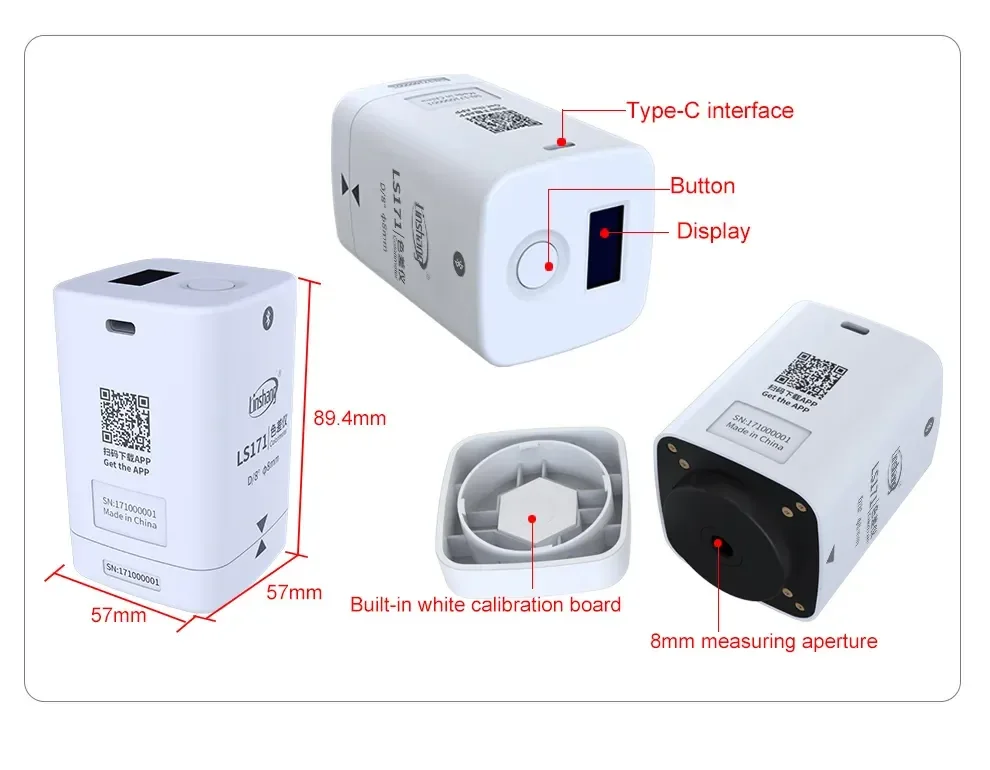

Illumination geometry : D/8, Specular Component Include (SCI)Illumination light source : Full spectrum LED light sourceMeasuring aperture : 8mmMeasurement conditions : Light source D65, field of view 10°Measuring time : about 1sColor spaces : CIE Lab, Luv, LCh, Yxy, CMYK, RGB, HexColor difference formulas : ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1.4:1)Repeatability ; Standard deviation ΔE*ab ≤ 0.03(Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration)Power supply : Rechargeable lithium battery 3.7V@600mAh,can continuously measure 10,000 times underfull chargeDimension : 57×57×89.4mm (L*W*H)Weight : about126gDisplay : 0.96 inch OLEDData transmission : BluetoothCharging port : USB (Type-C)Operating temperature : 0~45°C, 0~85%RH(no condensation)Storing temperature : -25~55°C, 0~85%RH (no condensation)
