รหัสสินค้า:LS172สถานะสินค้า:พร้อมส่งระยะเวลาจัดเตรียมสินค้า:2 วันรายละเอียดสินค้า

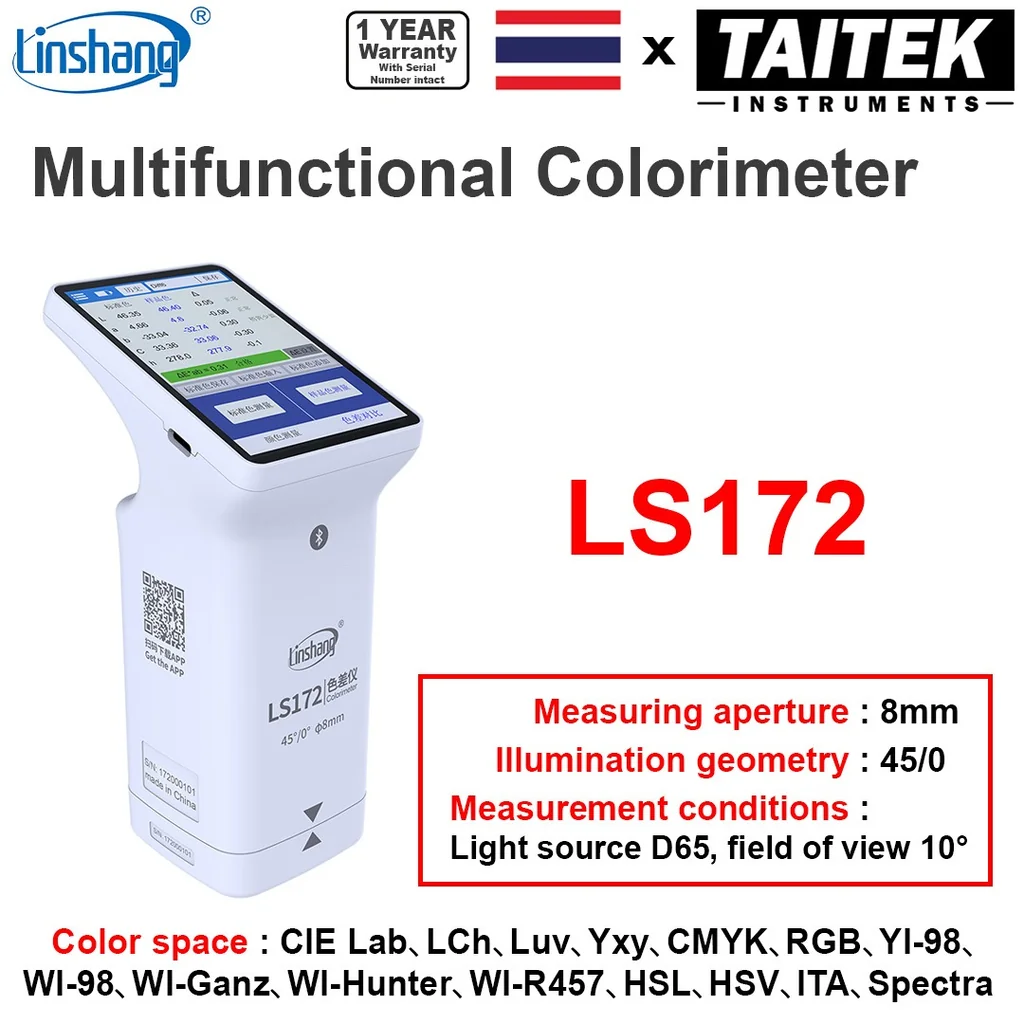

เครื่องวัดสี Multifunctional Colorimeter Linshang รุ่น LS172 Measuring aperture 8mm Illumination geometry 45/0

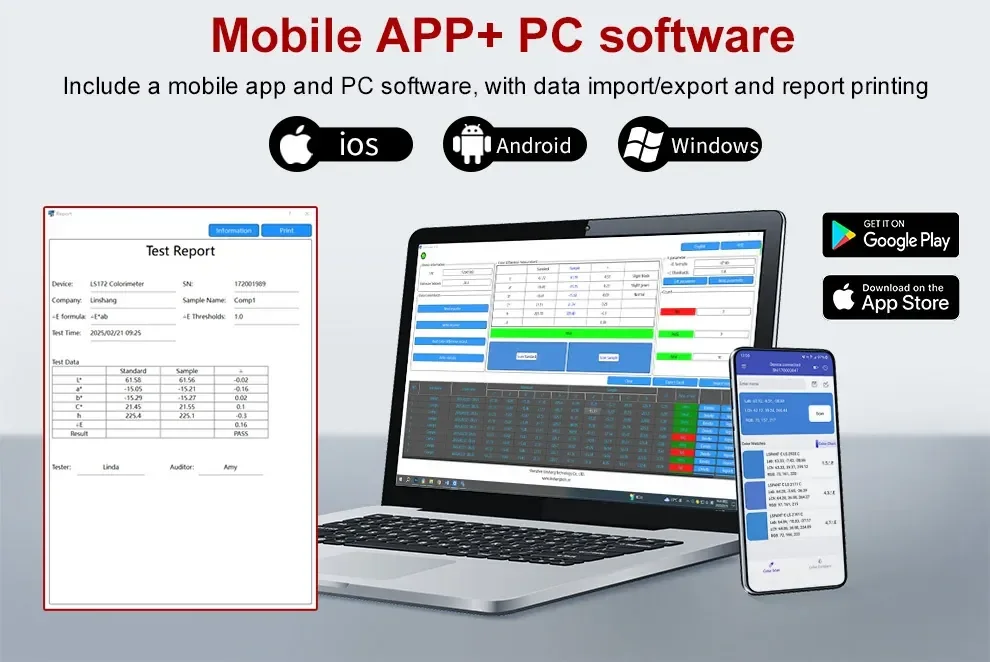

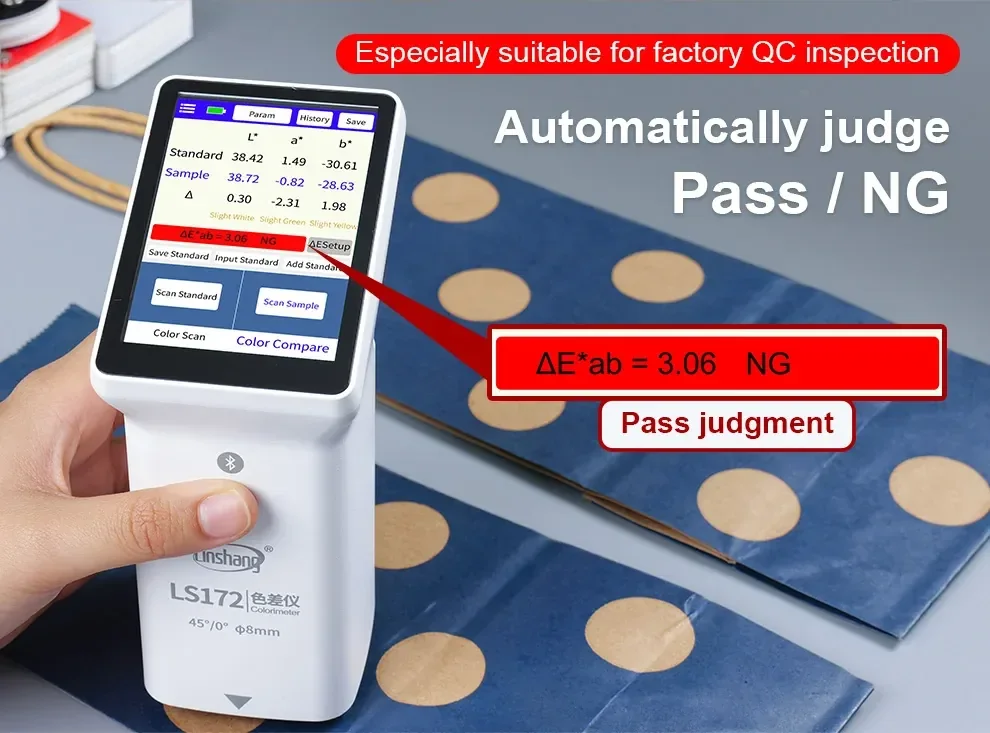

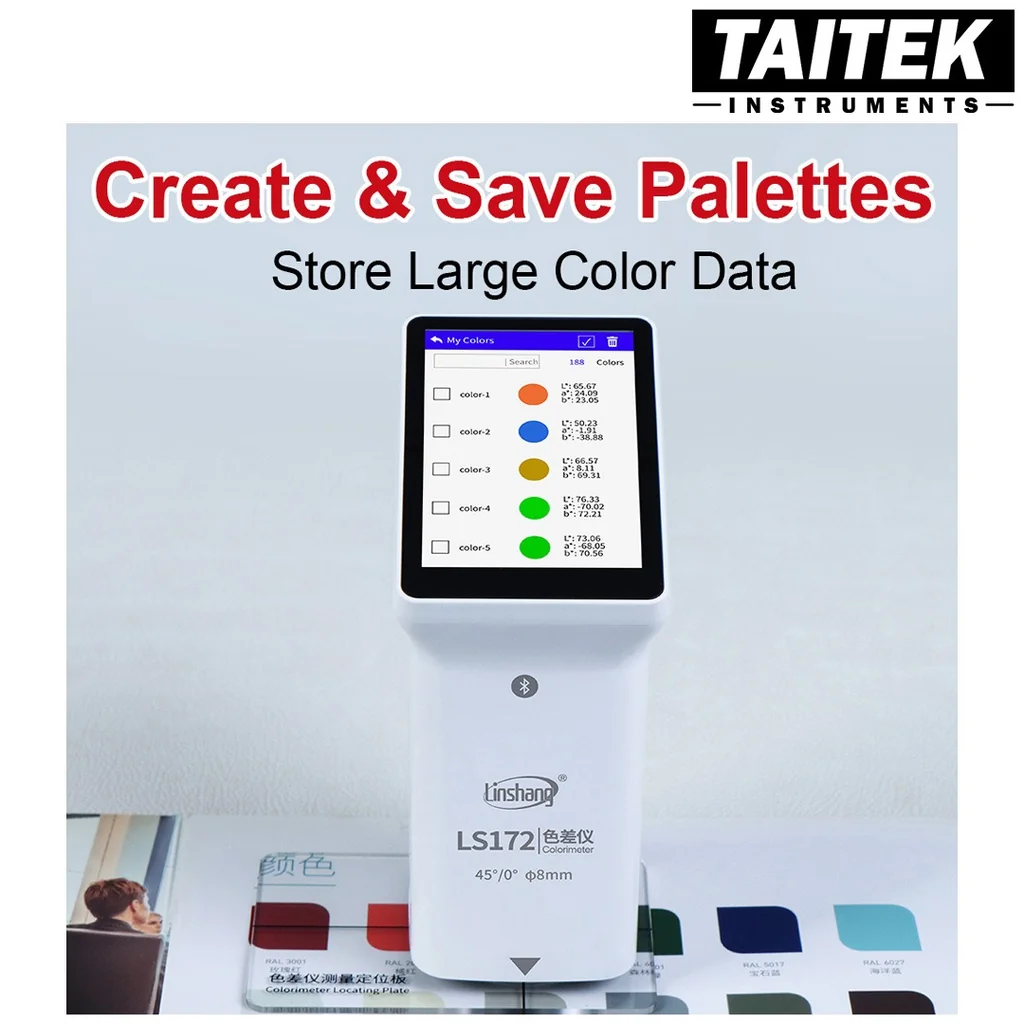

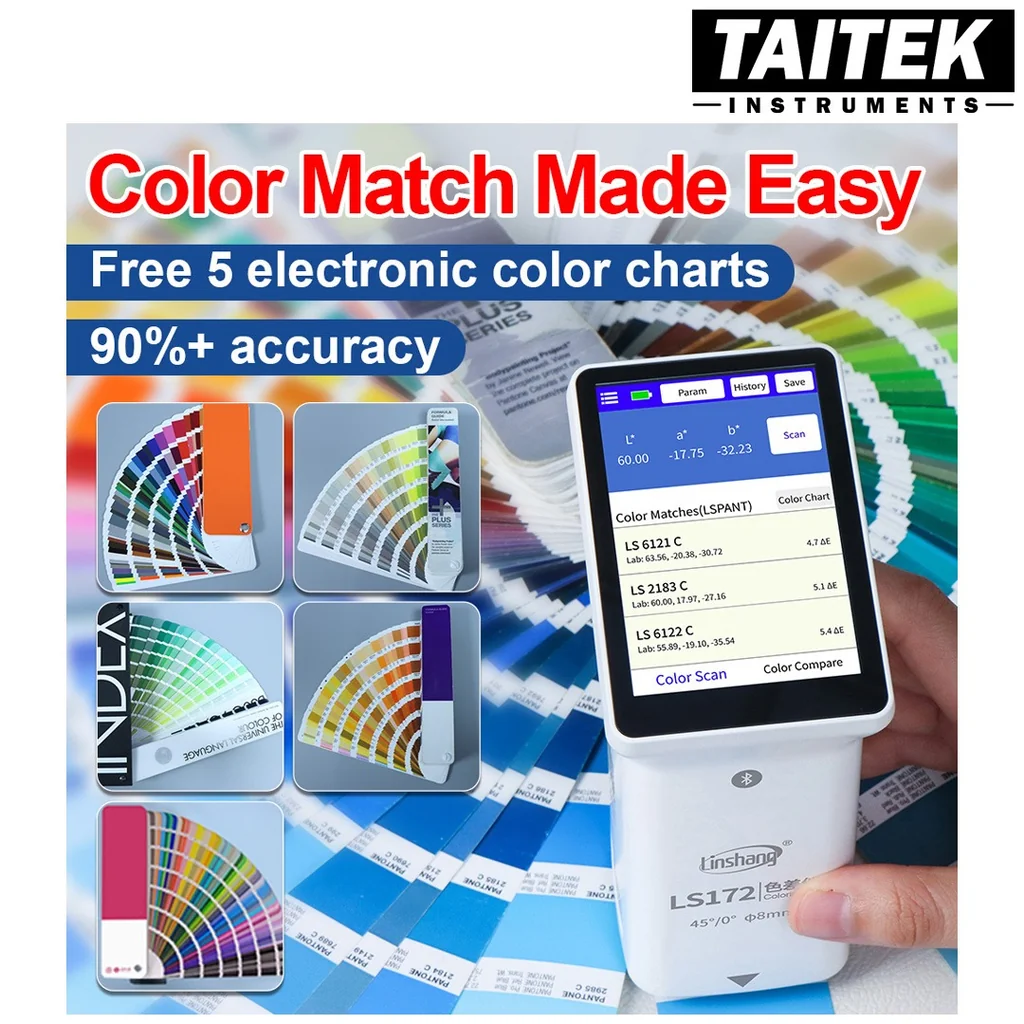

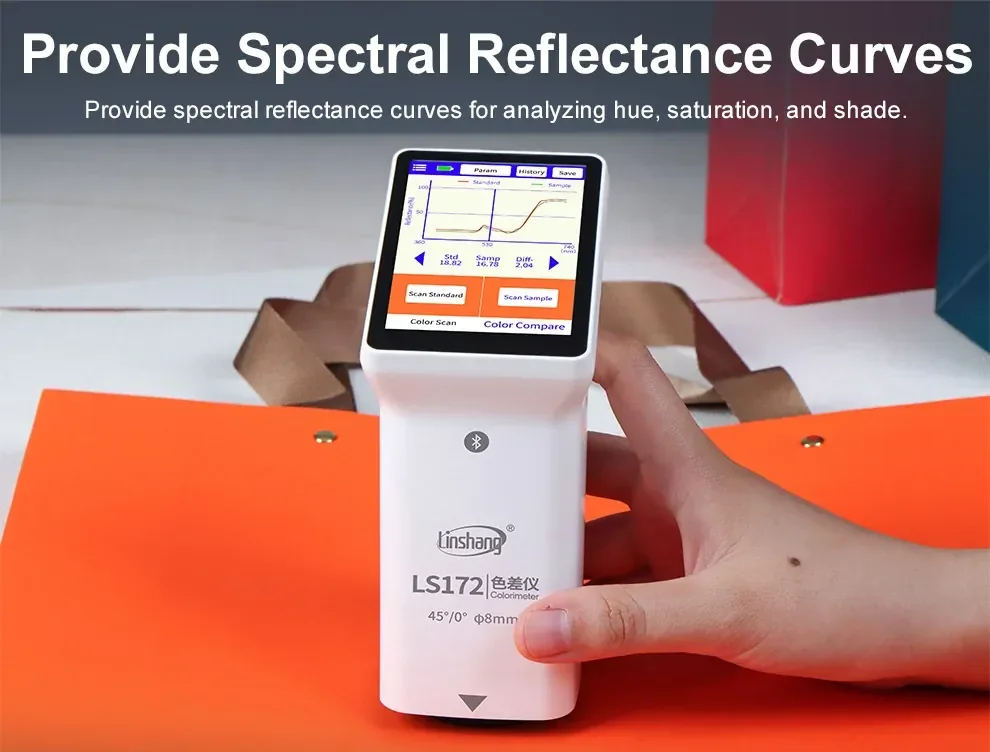

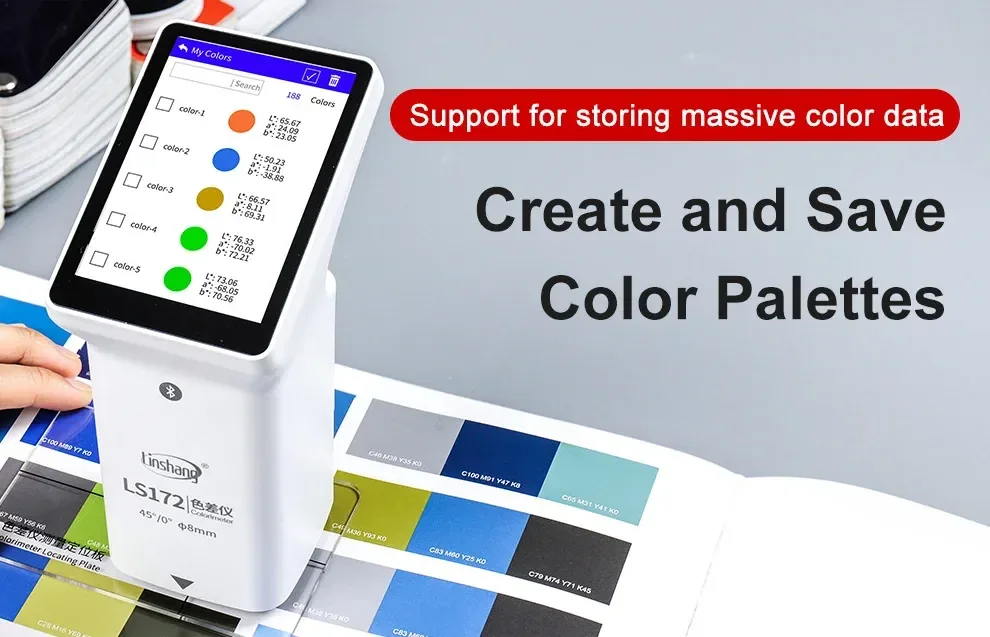

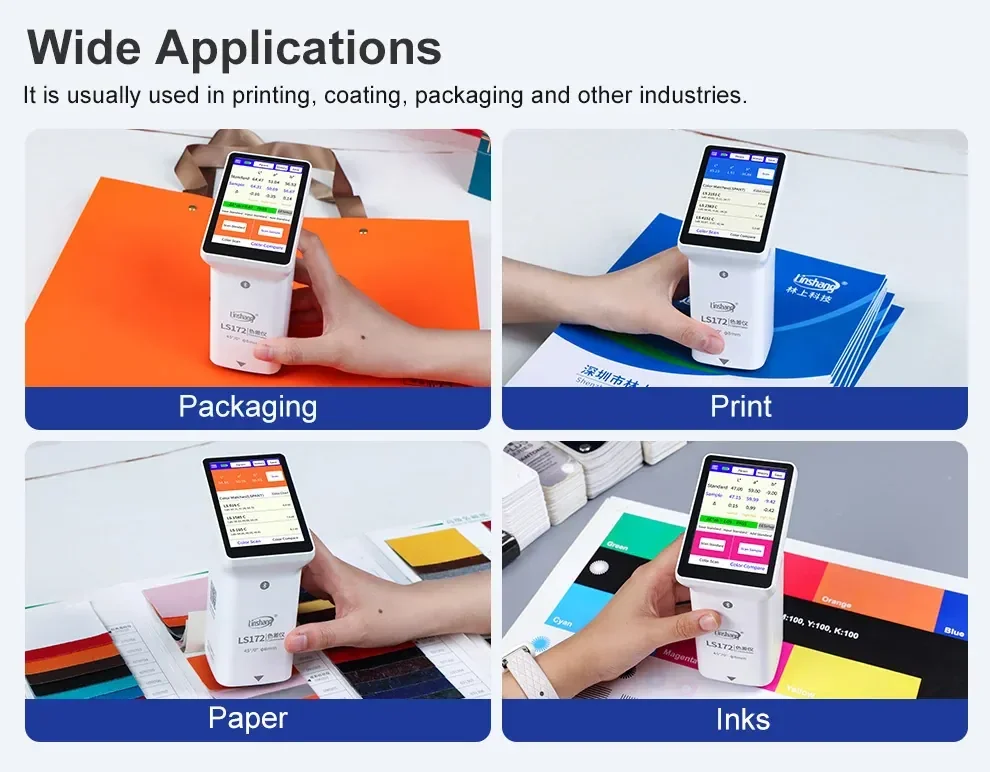

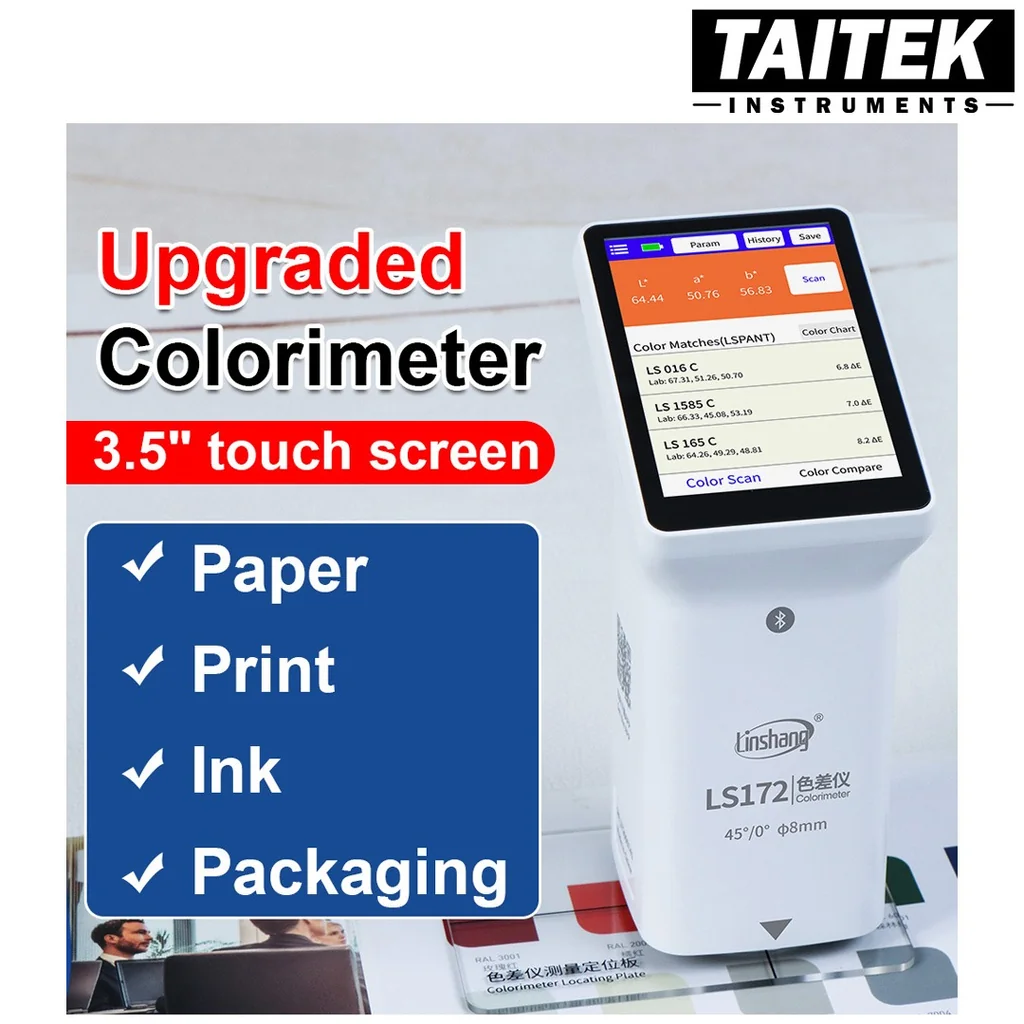

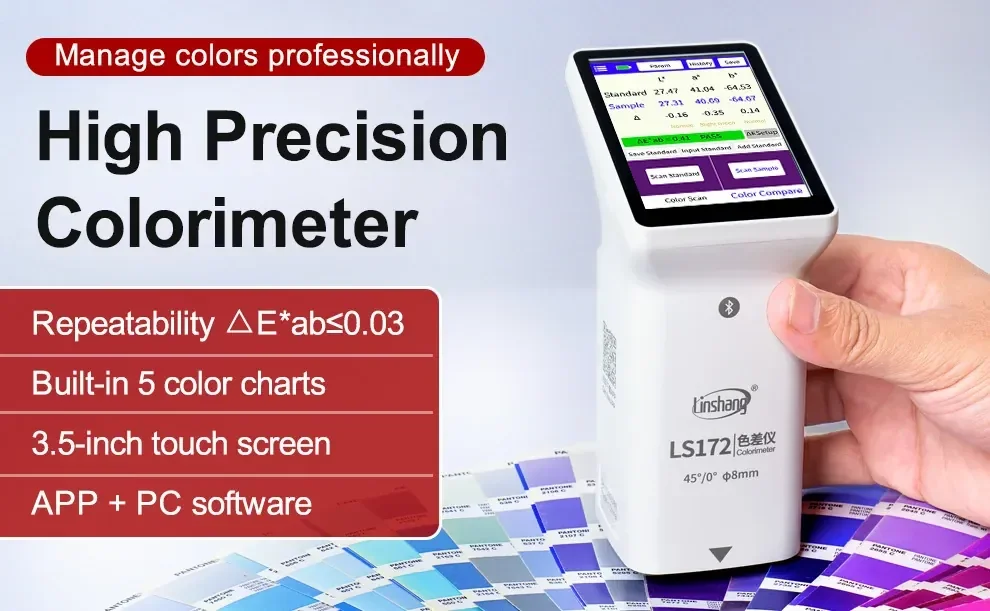

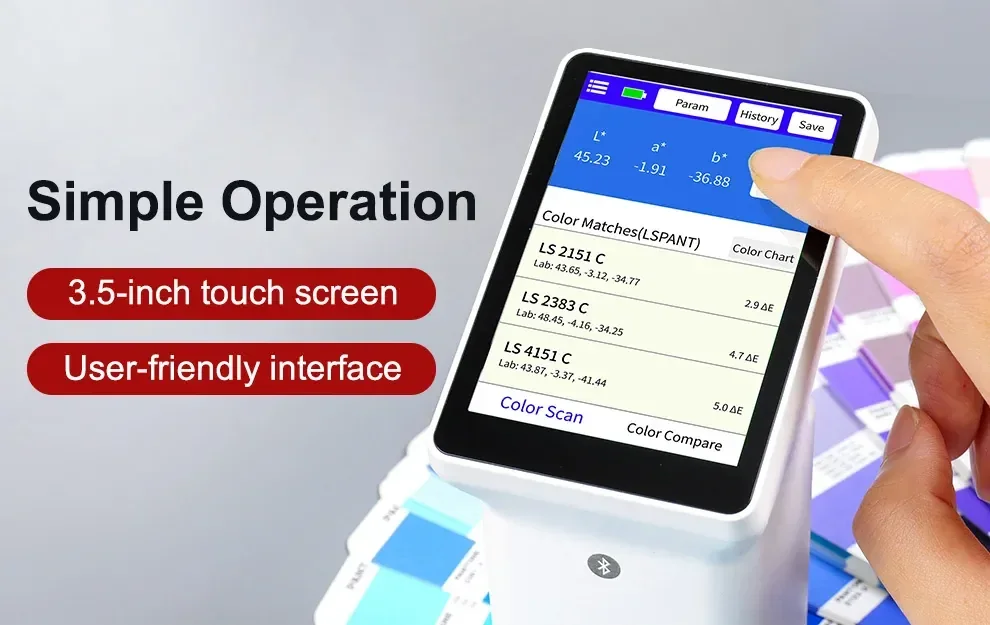

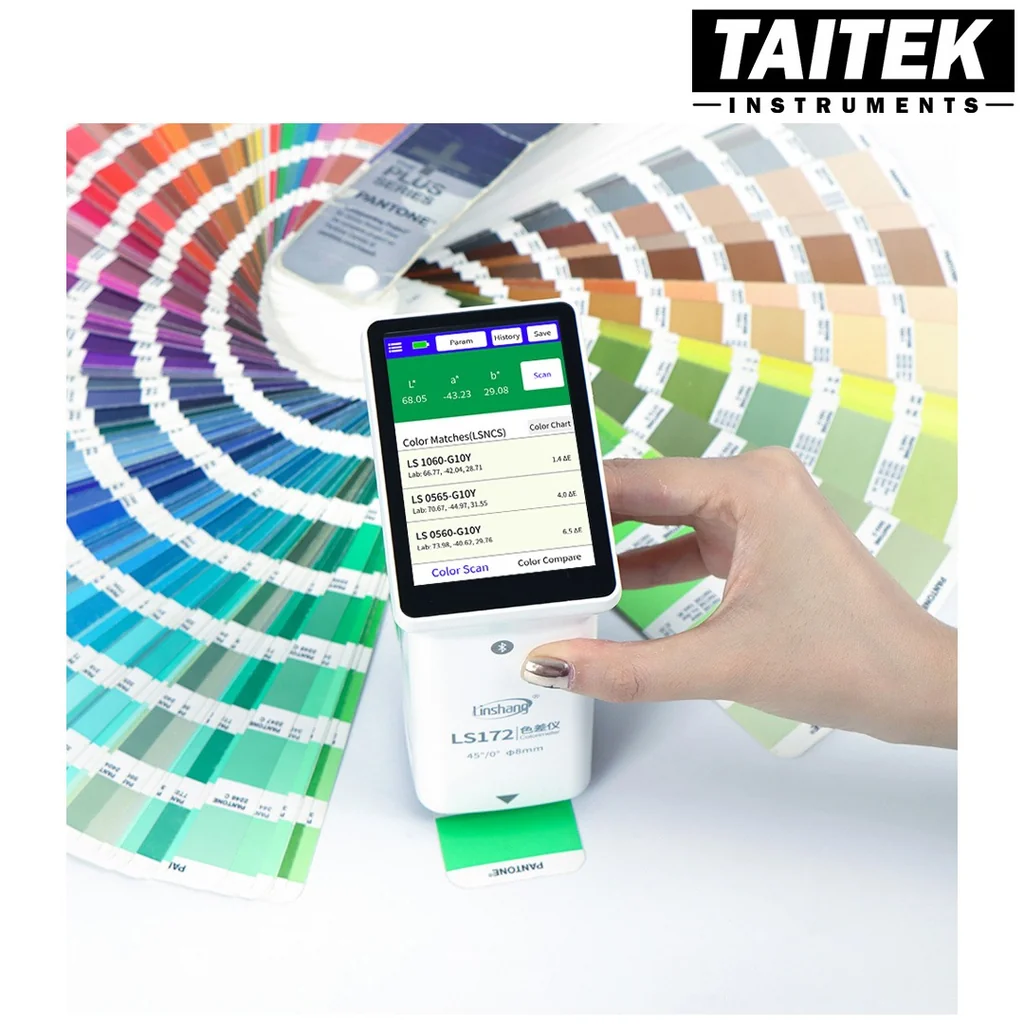

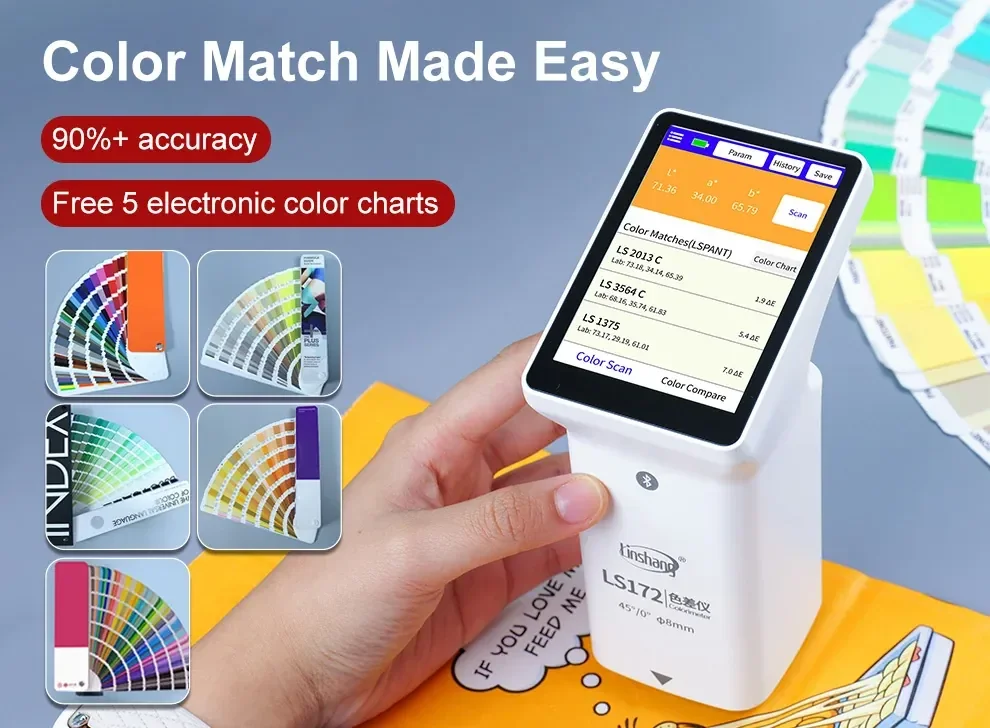

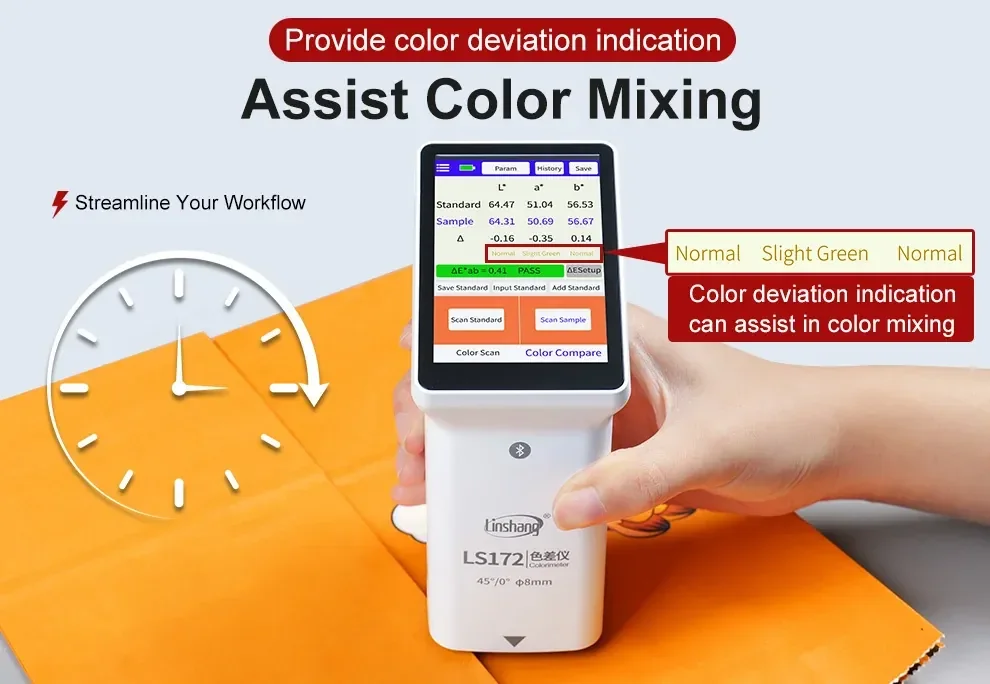

LS172 45/0 Portable CIElab Colorimeter Colour Meter Ral Panton Color Price App Colormeter Digital Lab Colorimeter for PrintDescriptions：LS172 portable colorimeter, using 3.5 inches IPS color screen capacitive touch screen. Designed with 45°/0° optical geometry, the ral color reader is usually used in packaging, printing and other industries. In two simple steps, it can quickly realize the color difference comparison. Multiple electronic color cards are built-in, which can quickly match three closest color card numbers when color measuring. With QC function, the lab colorimeter can realize batch inspection and improve inspection efficiency. Equip App colorimeter can be used with mobile APP and PC software, and supports multiple ways of color sharing and exporting. The Colorimeter for print has CE certificate and is guaranteed to pass the test of authoritative metrology organizations.Features：1. 45°/0° optical geometry design, which is used in packaging, printing and other industries.2. Touch screen controls, 30° viewing angle design, so that good user operation experience.3. Compare color difference in two simple steps.4. Match three closest color card numbers when color measuring due to built-in multiple electronic color cards.5. With QC function, it can realize batch inspection and improve inspection efficiency.6. Support mobile APP and PC software, multiple ways to share and export colors.7. High precision, good repeatability, △E*ab≤0.03.8. The colour meter has CE certificate and is guaranteed to pass the test of authoritative metrology organizations.
Specification:

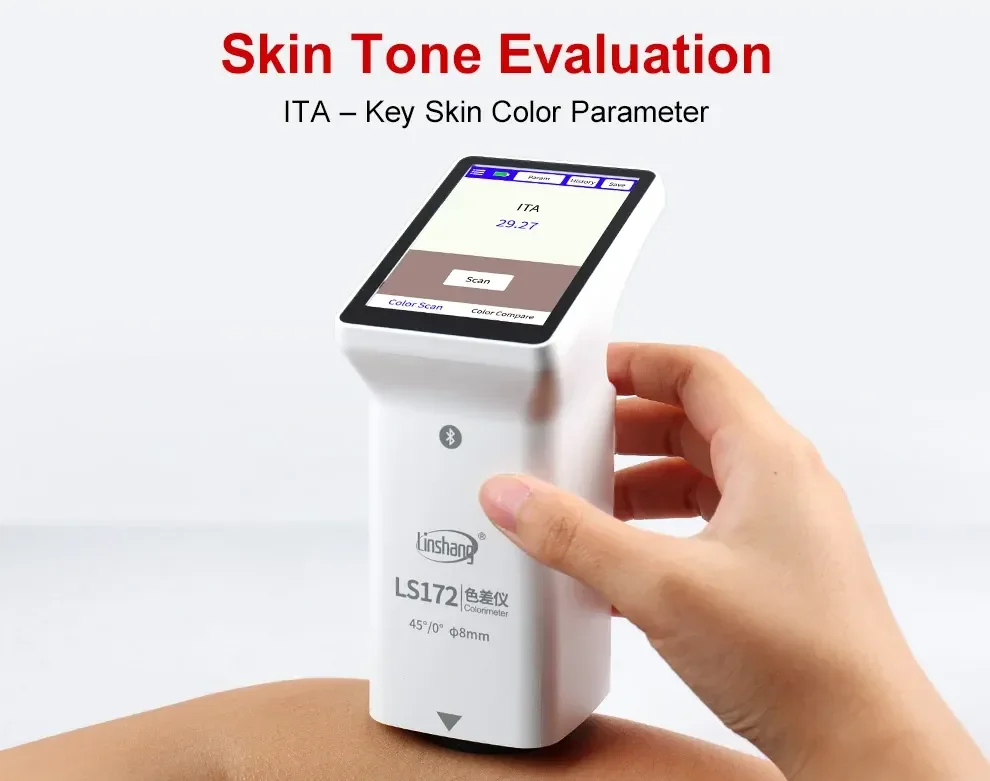

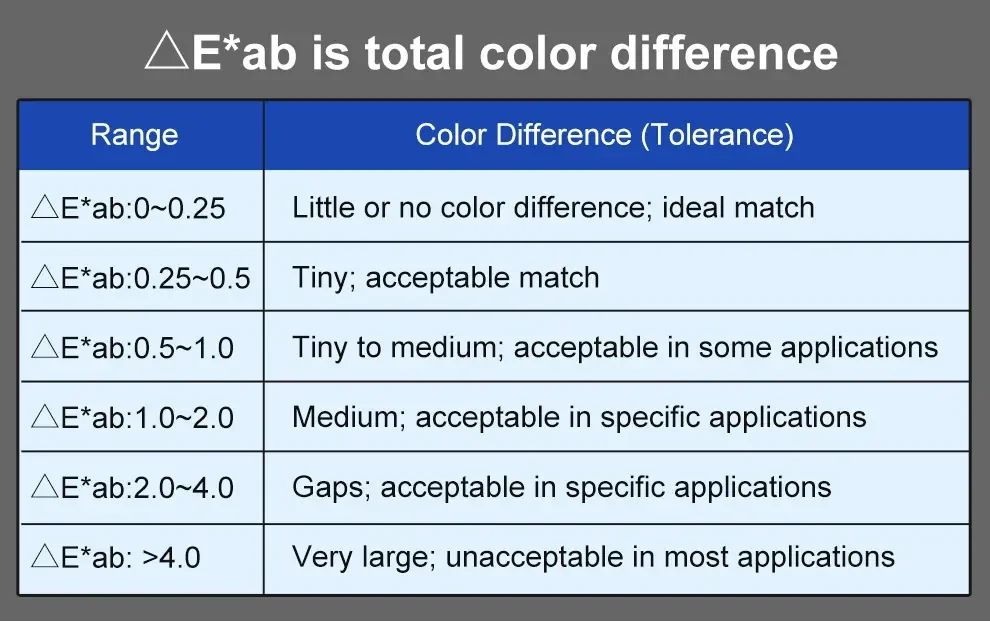

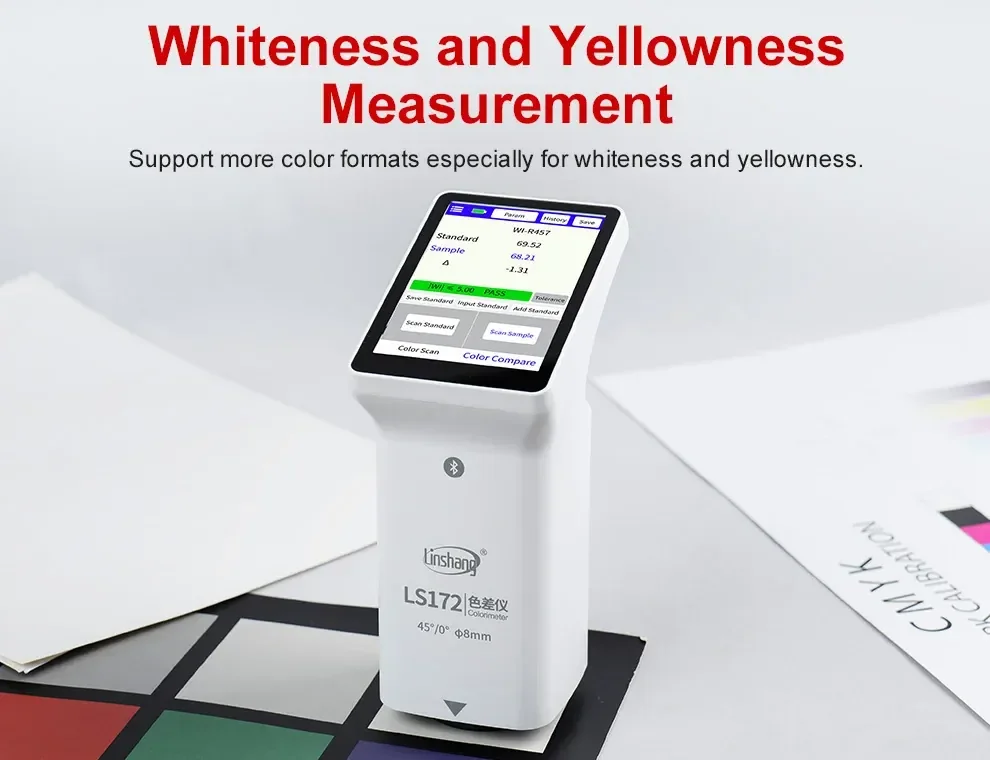

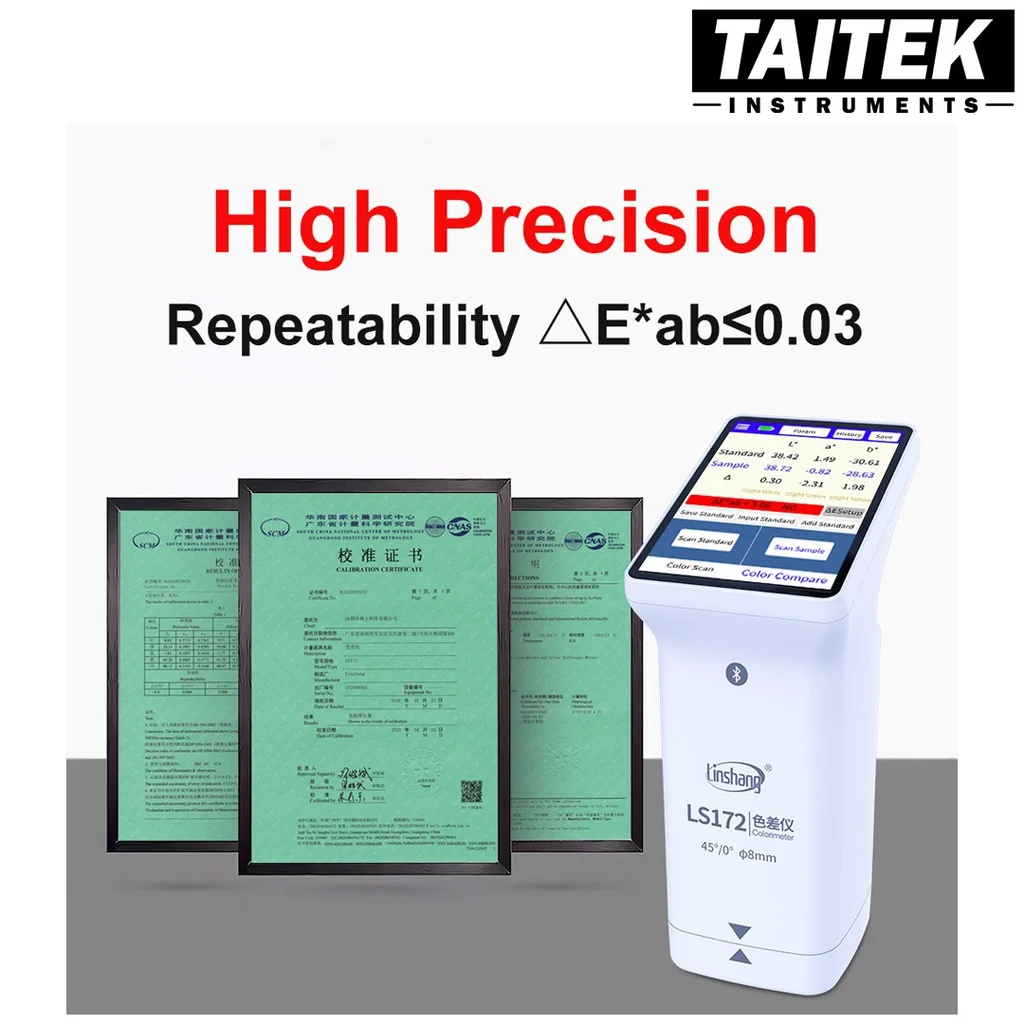

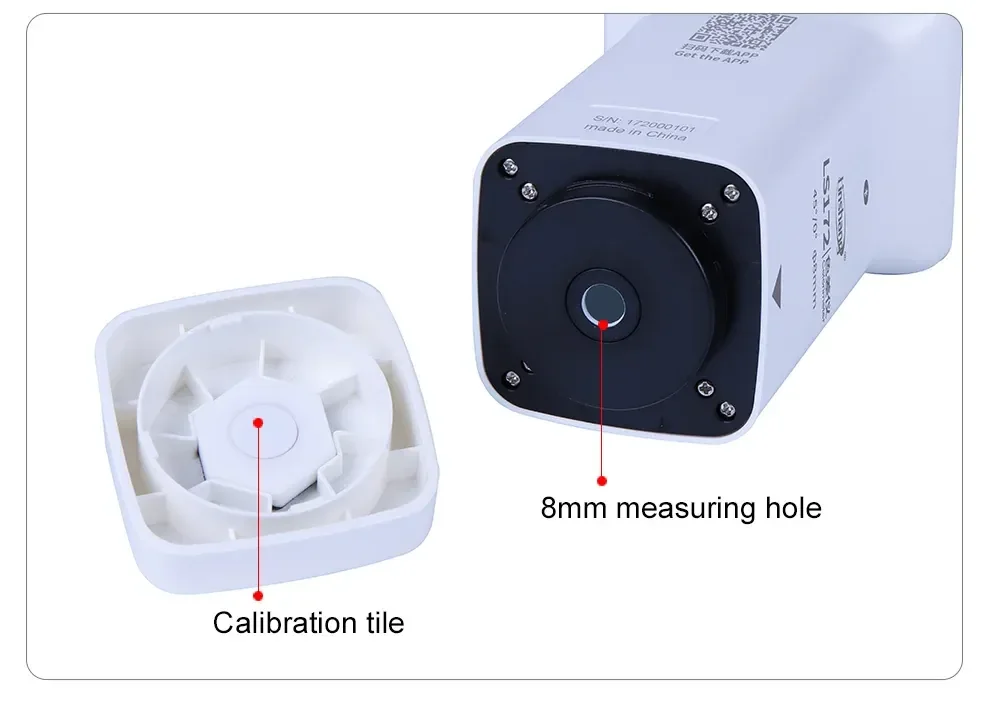

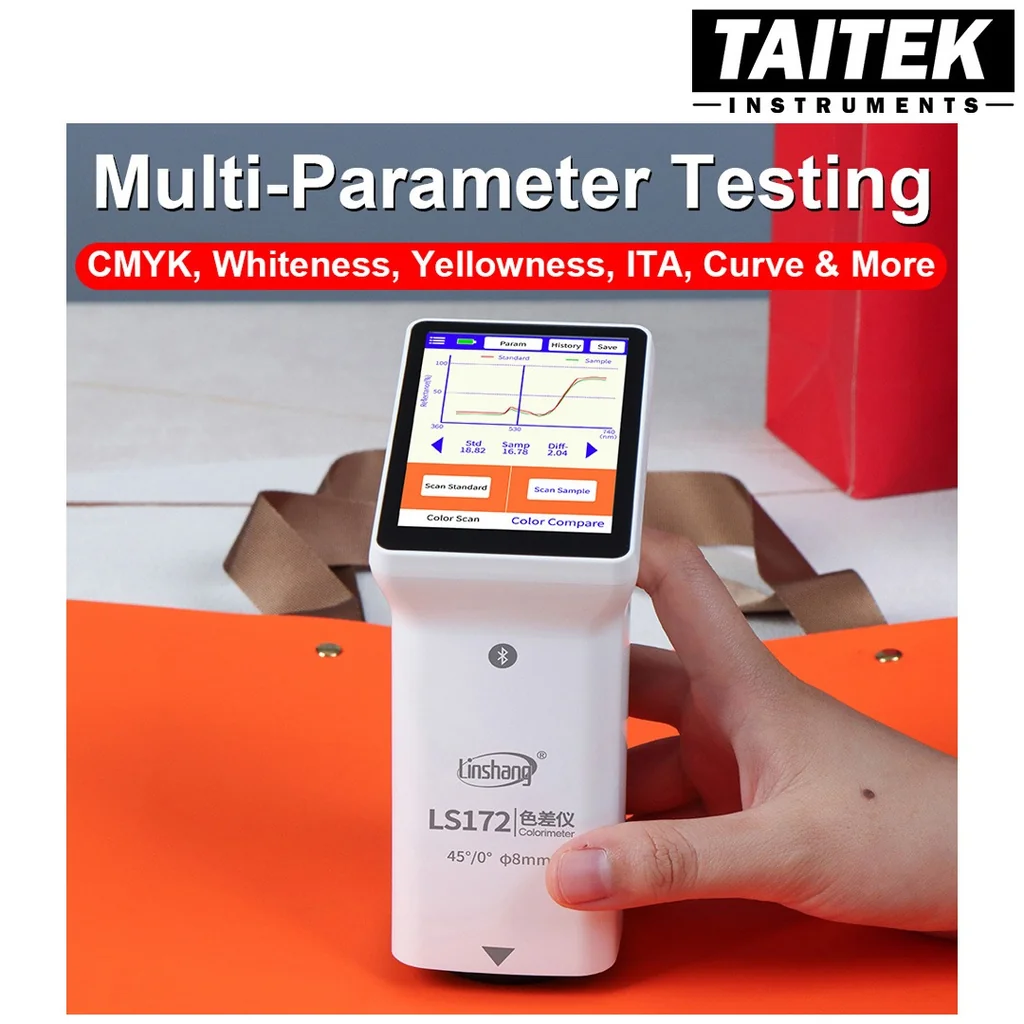

Illumination geometry : 45/0 (45° annular illumination, 0° viewing angle)Illumination light source : Full spectrum LED light sourceSpectral Range : 400–700nmSpectral Interval : 10nmMeasuring aperture : 8mmMeasurement conditions : Light source D65, field of view 10°Measuring time : About 1sColor space : CIE Lab, LCh, Luv, Yxy, CMYK, RGB, YI-98 WI-98, WI-Ganz, WI-Hunter, WI-R457 HSL, HSV, ITA, SpectraColor difference formula : ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1.4:1)Repeatability ; Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration)Dimension : 86mm×62.5mm×158mmWeight : About 225gPower supply : Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full chargeDisplay : 480×320 dot matrix IPS color screenLanguage : Simplified Chinese, English, TurkeyCharging port : USB (Type-C)Operating temperature range : 0–45°C, 0–85%RH (no condensation)Storage temperature range : –25–55°C, 0–85%RH (no condensation)
