รหัสสินค้า:LS177สถานะสินค้า:Pre-Orderระยะเวลาจัดเตรียมสินค้า:30 วันรายละเอียดสินค้า

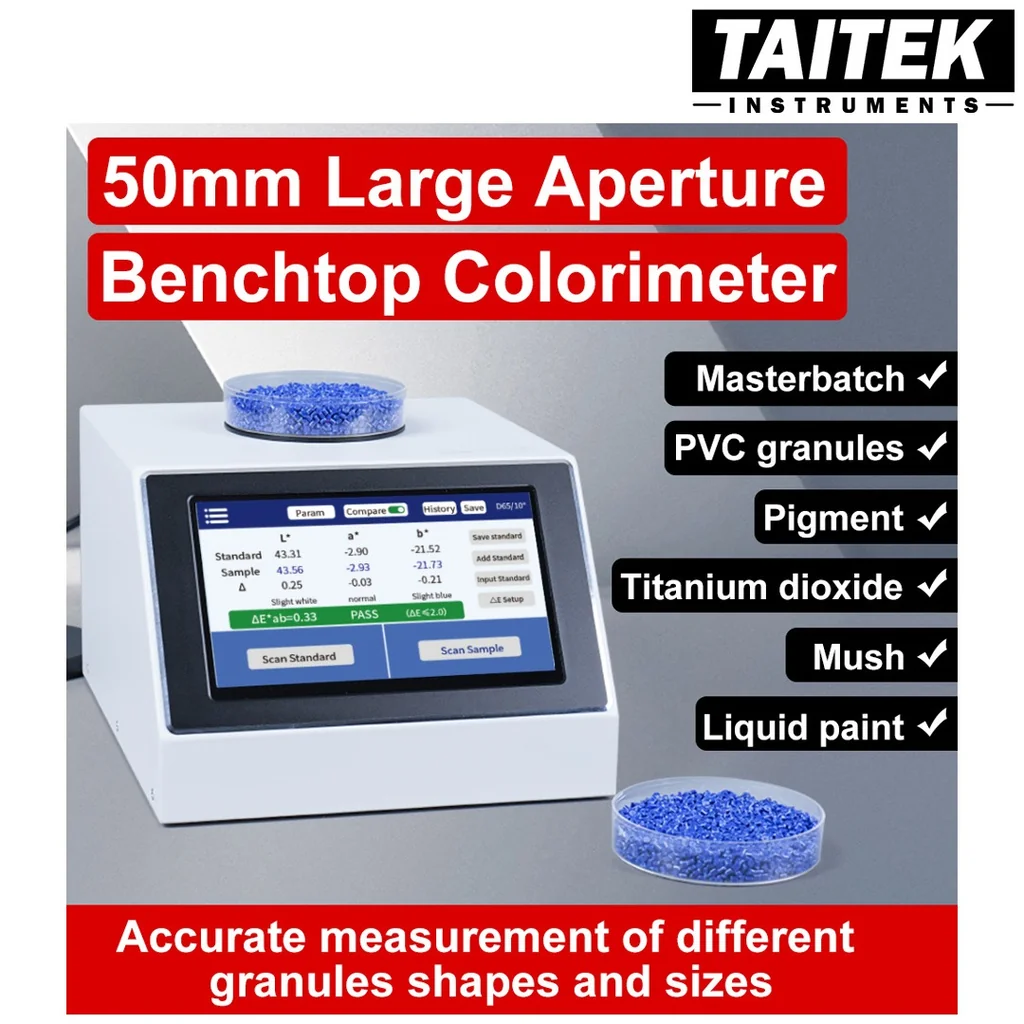

เครื่องวัดสี Multifunctional Colorimeter Linshang รุ่น LS177 Measuring aperture 50mm Illumination geometry D/8 เหมาะกับการวัดสีเม็ดพลาสติก เม็ดยา เนื้อผ้า วัสดุประเภทเม็ดและผงต่างๆ Powder Pigments Granules Masterbatch

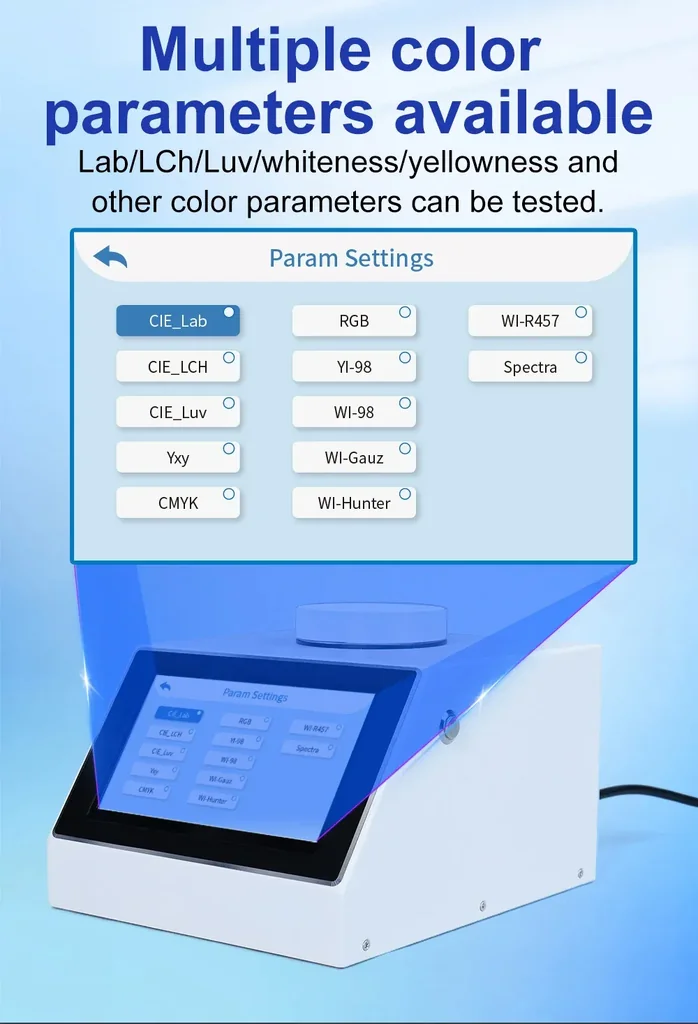

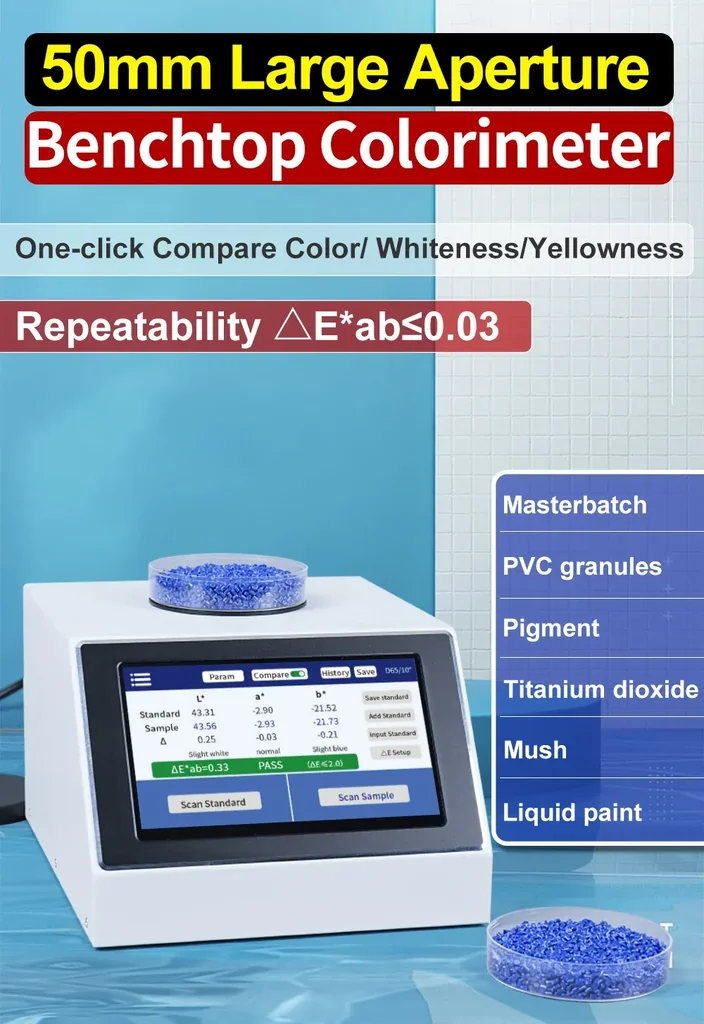

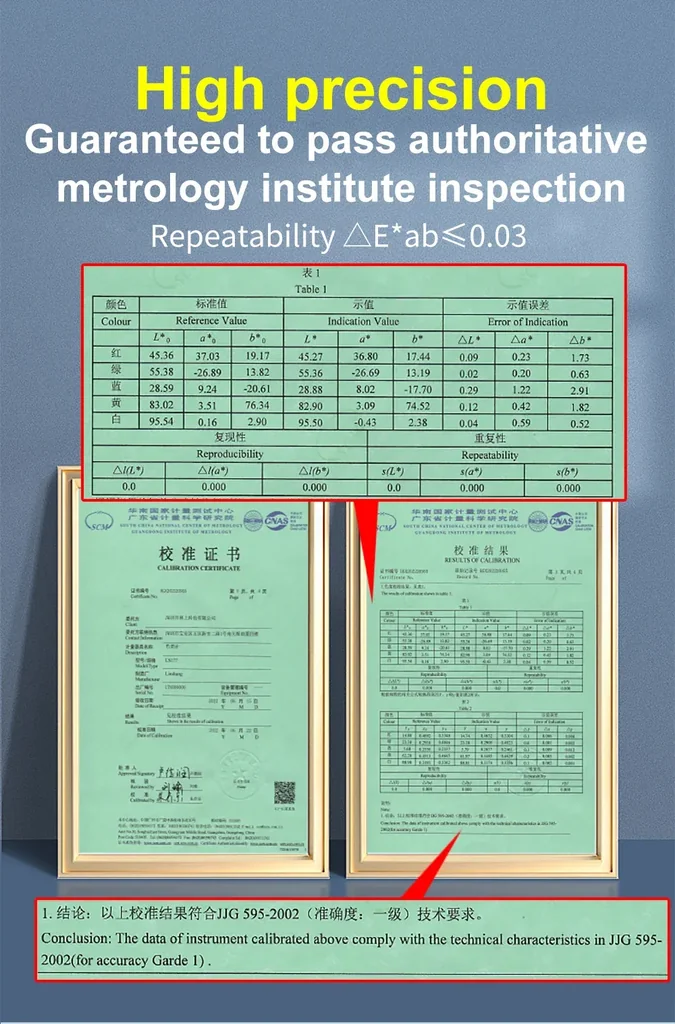

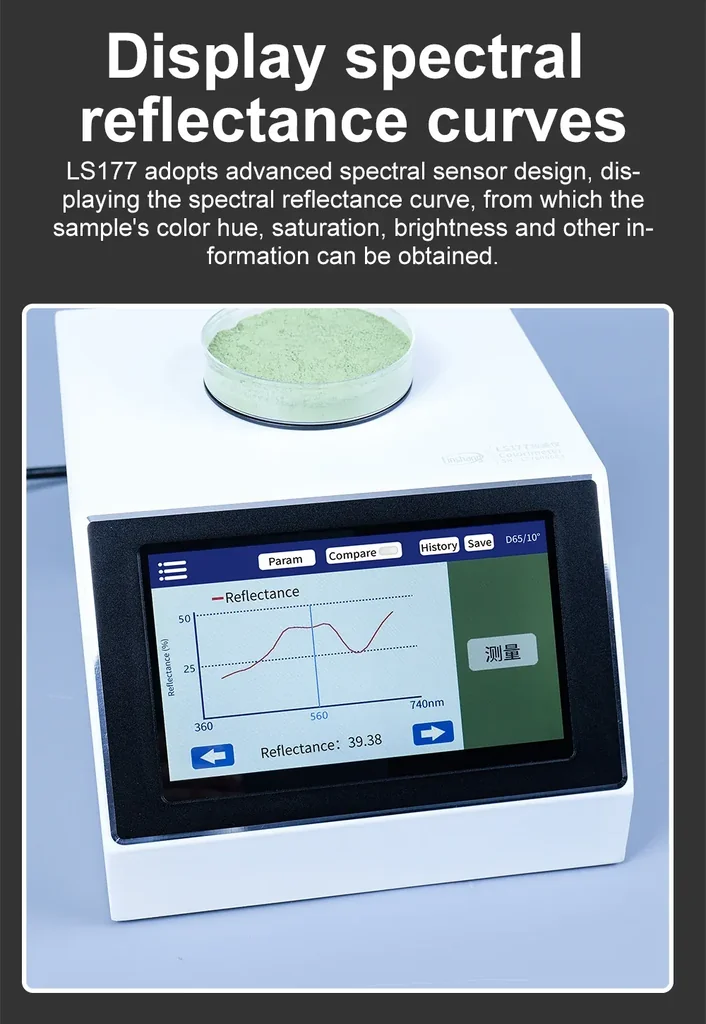

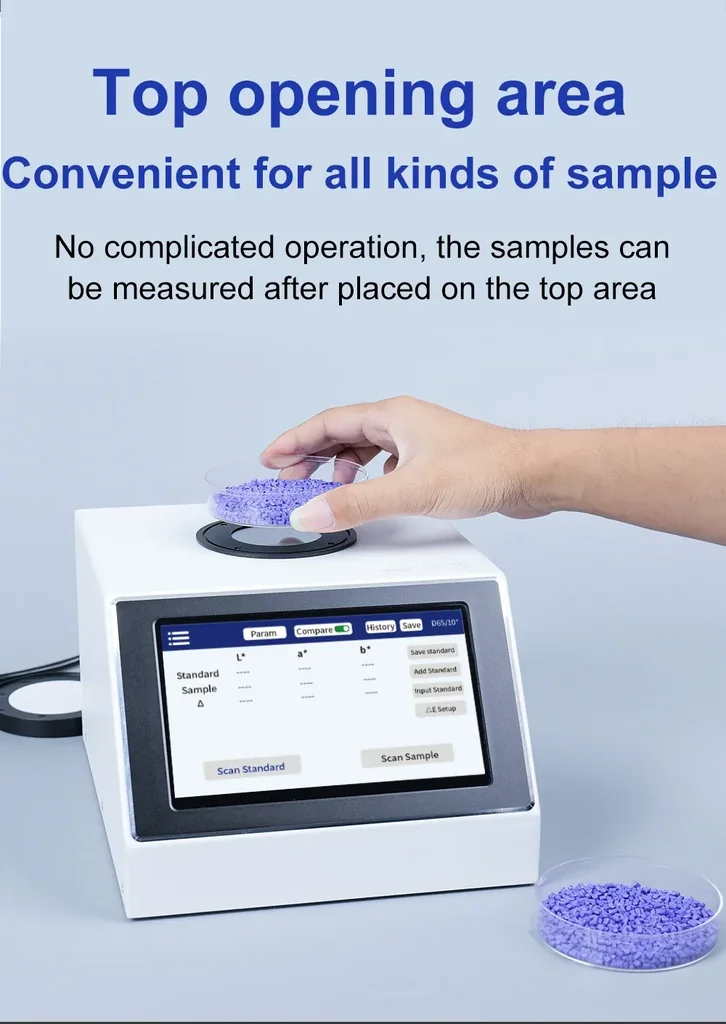

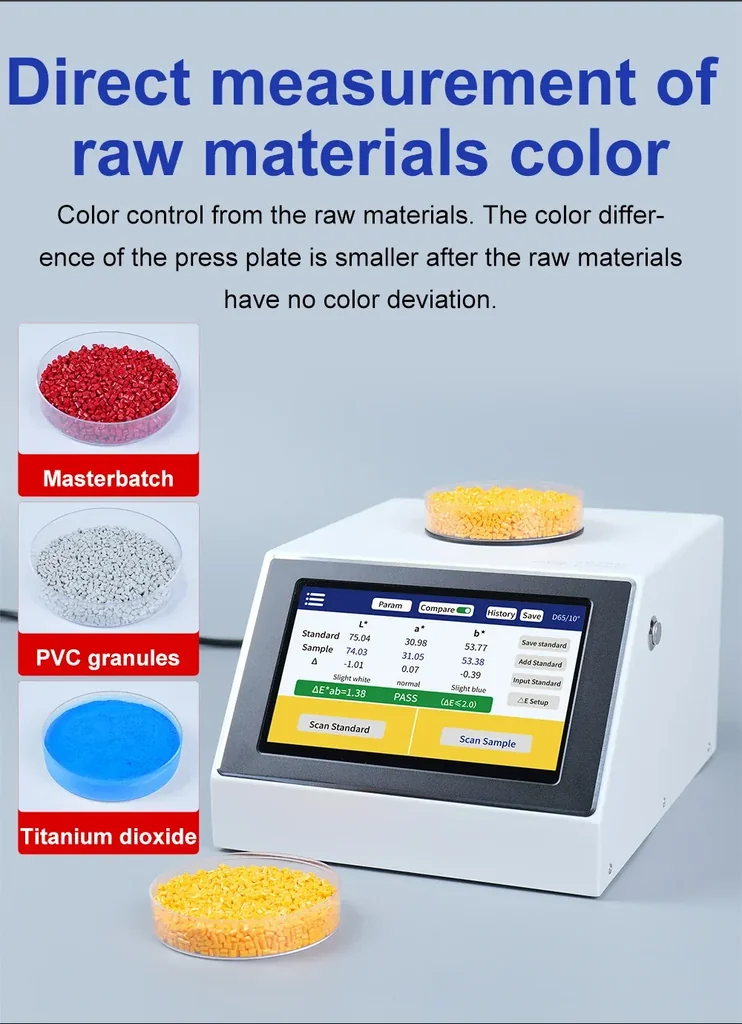

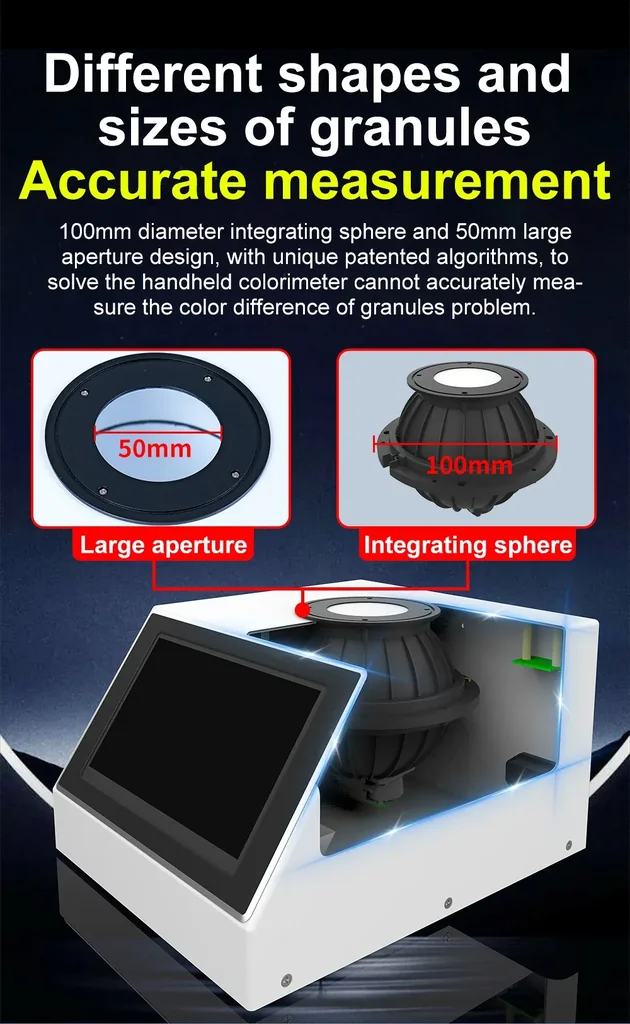

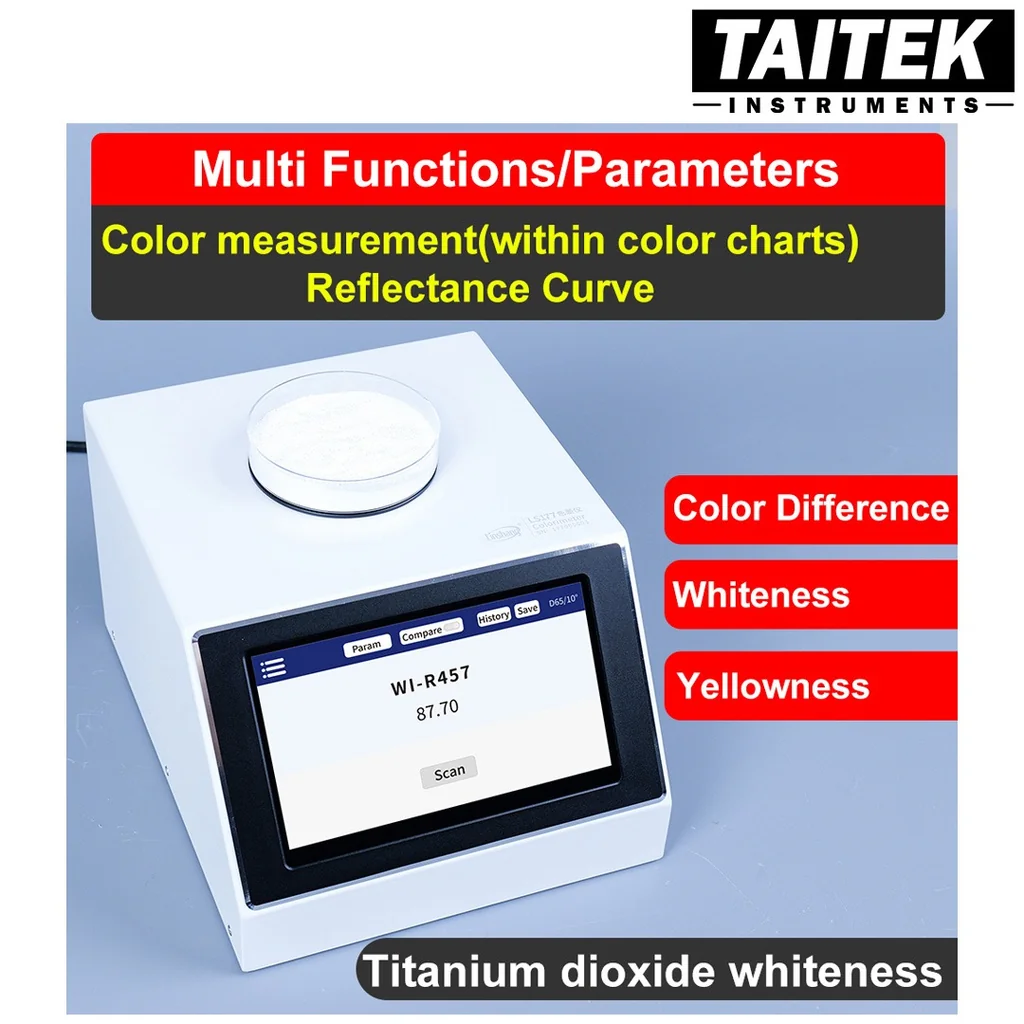

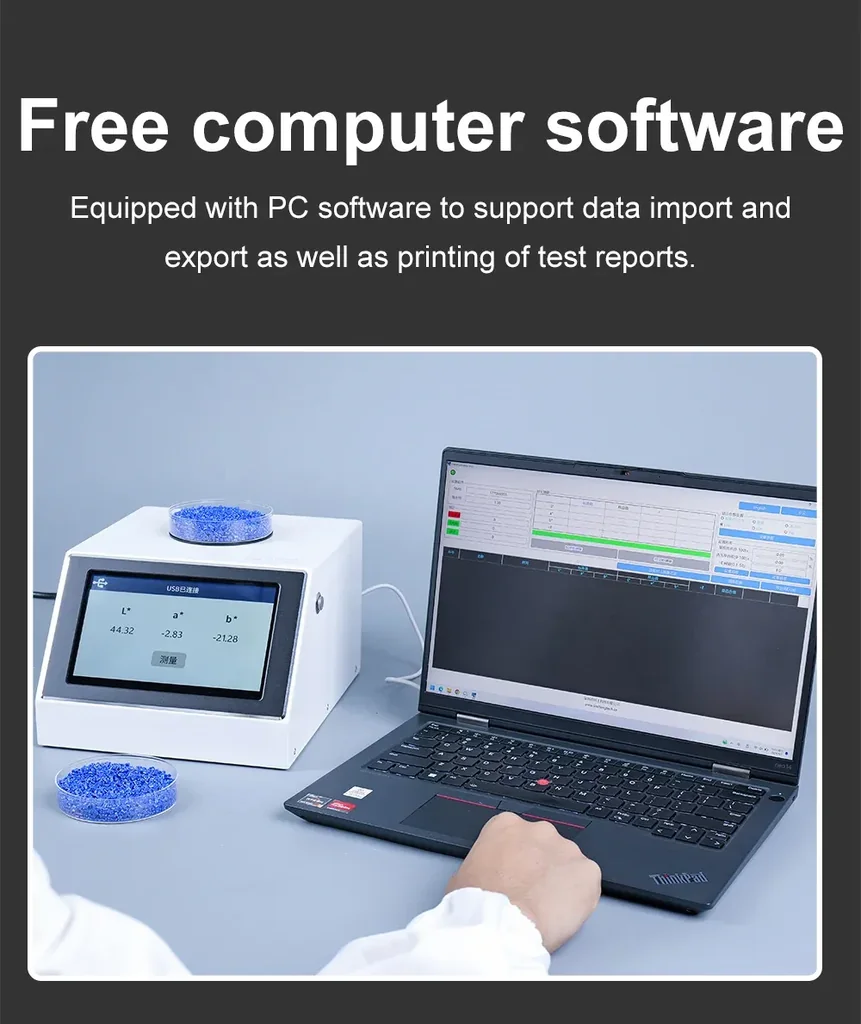

LS177 D/8 Spectrophotometer Spectro Colorimeter Powder Pigments Granules Masterbatch ColorimeterDescriptions：LS177 colorimeter powder adopts D/8 illumination geometry, with 50mm large test aperture, specialized in color measurement and color comparison of non-transparent materials such as powder, masterbatches, granules, paint and so on. The masterbatch colorimeter not only has various color spaces and color difference formulas, but also can display spectral reflectance curves, which is widely used in color management and quality control in the fields of paint, plastic, food, medicine and so on. The granules colorimeter also provides professional mobile APP and PC software to support data export and report printing.Features：1. Specialized in color management and quality control in powder, masterbatches, granules, food, paint, medicine, etc.2. 100mm diameter integrating sphere and 50mm large aperture design, with unique patented algorithms.3. Guaranteed to pass authoritative metrology institute inspection.4. No complicated operation, the samples can be measured after placed on the top area.5. Only two clicks compare color with the 7-inch large touch screen.6. Lab/LCh/Luv/whiteness/yellowness and other color parameters can be tested.7. LS177 masterbatch colorimeter for color measurement adopts advanced spectral sensor design, displaying the spectral reflectance curve.8. spectral colorimeter can match the closest color chart numbers from electronic color cards.9. Equipped with software to support data import and export as well as printing of test reports.10. The masterbatch colorimeter can be connected to mobile APP via Bluetooth for online measurement and color sharing and saving.Specification:

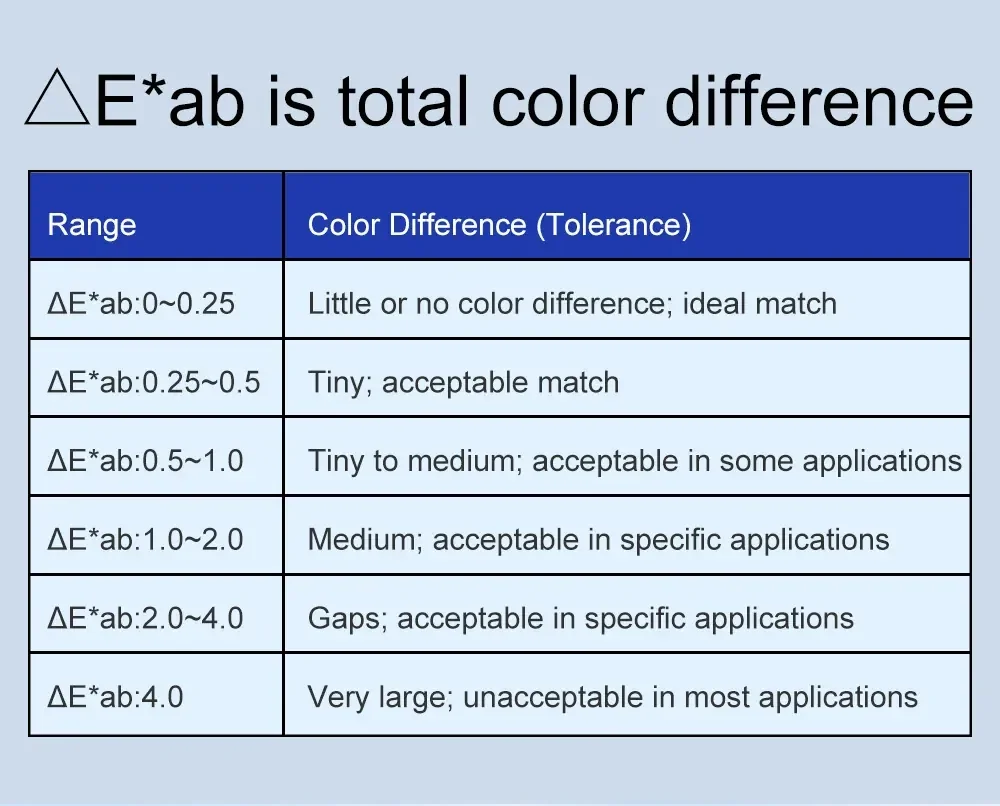

Illumination geometry : D/8, specular component include (SCI)Illumination light source : Full spectrum LED light sourceSpectral range : 400-700nmSpectral interval : 10nmMeasuring aperture : 50mmMeasurement conditions : Light source D65, field of view 10°Measuring time : About 1.5sColor space : CIE Lab, Luv, LCh, Yxy, CMYK, RGB, WI-98, WI-Ganz, WI-Hunter, YI-98, WI-R457, ReflectanceColor difference formula : ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1:1), ΔE*cmc(1.4:1)Repeatability ; Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)Inter-instrument agreement ; ΔE*ab<=0.4, based on avg. of 12 BCRA series II tilesDimension : 21.1 × 26.4 × 15.5cm (L×W×H)Weight : About 3.29kgPower supply : 100~277V 0.4A 50/60HZDisplay : 7-inch 1024*600 dot matrix IPS color screenLanguage : Simplified Chinese, English, TurkeyData transmission : USB, BluetoothOperating temperature range : 0~45°C, 0~85%RH (no condensation)Storage temperature range : -25~55°C, 0~85%RH (no condensation)
